Physical size and weight
| Dimension S9 thread diameter (profiled rail systems) |
M3
|
| Height of guide rail H2 |
23
mm |
| Height of runner block |
35.35
mm |
| Height runner block with guide rail |
42
mm |
| Length of runner block |
119.7
mm |
| Net weight |
1.31
kg |
| Width of runner block |
90
mm |
Other properties
| Accuracy class |
N - Normal
|
| Ball chain |
Without ball chain (standard)
|
| Dimension A (profiled rail systems) |
90
mm |
| Dimension A1 (profiled rail systems) |
45
mm |
| Dimension A2 (profiled rail systems) |
28
mm |
| Dimension A3 (profiled rail systems) |
31
mm |
| Dimension B (profiled rail systems) |
119.7
mm |
| Dimension B tolerance (profiled rail systems) |
+ 0.5
|
| Dimension B1 |
89.4
mm |
| Dimension dW |
4.762
mm |
| Dimension E1 |
72
mm |
| Dimension E2 |
52
mm |
| Dimension E8 (profiled rail systems) |
42
mm |
| Dimension E9 (profiled rail systems) |
14.25
mm |
| Dimension H |
42
mm |
| Dimension H1 (profiled rail systems) |
35.35
|
| Dimension H2 (profiled rail systems) |
23
mm |
| Dimension K1 (profiled rail systems) |
25
mm |
| Dimension K2 (profiled rail systems) |
25.7
mm |
| Dimension K3 (profiled rail systems) |
7.25
mm |
| Dimension K4 (profiled rail systems) |
7.25
mm |
| Dimension N1 (profiled rail systems) |
11
mm |
| Dimension N6 (profiled rail systems) |
12
mm |
| Dimension N6 tolerance (profiled rail systems) |
± 0.5
|
| Dimension S1 (profiled rail systems) |
8.5
mm |
| Dimension S2 (profiled rail systems) |
M10
|
| Dimension S5 (profiled rail system) |
9
mm |
| Dimension S9 |
M3x6.5 mm
|
| Dimension S9 lead |
6.5
mm |
| Dimension T |
80
mm |
| Dimension T1 min |
16
mm |
| Dimension V1 |
7
mm |
| Dynamic load capacity C100 |
39000
N |
| Dynamic load capacity C50 |
49100
N |
| Dynamic longitudinal moment load capacity ML100 |
610
Nm |
| Dynamic longitudinal moment load capacity ML50 |
770
Nm |
| Dynamic torsional moment load capacity Mt100 |
590
Nm |
| Dynamic torsional moment load capacity Mt50 |
740
Nm |
| Format |
FLS - flange, long, standard height
|
| Friction coefficient μ |
0.002 ... 0.003
|
| Lubrication |
Pre-lubricated, preserved
|
| Maximum acceleration rate amax |
500
m/s² |
| Maximum permissible linear speed vmax |
5
m/s |
| Model |
Compact Line ball runner block
|
| Nominal size |
30
|
| Note: dynamic load capacity C100 |
Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.
|
| Note: dynamic load capacity C50 |
Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.
|
| Note: Dynamic longitudinal moment load capacity ML100 |
Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.
|
| Note: Dynamic longitudinal moment load capacity ML50 |
Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.
|
| Note: Dynamic torsional moment load capacity Mt100 |
Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.
|
| Note: Dynamic torsional moment load capacity Mt50 |
Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.
|
| Note: friction coefficient μ |
Friction coefficient µ without seal friction
|
| Note: Max. acceleration amax |
If Fcomb◡ 2.8 • Fpr : amax = 50 m/s2
|
| Note: permissible ambient temperature (min. ... max.) |
100 °C admissible for a short time.
|
| Permissible ambient temperature (min. ... max.) |
-10 °C ... +80 °C
|
| Pitch T guide rail |
80
mm |
| Preload class |
C1 - Low preload
|
| Seal |
SS - Standard seal
|
| Static load capacity C0 |
58800
N |
| Static longitudinal moment load capacity ML0 |
920
Nm |
| Static torsional moment load capacity Mt0 |
890
Nm |
| Version |
Ball rail system
|
Description

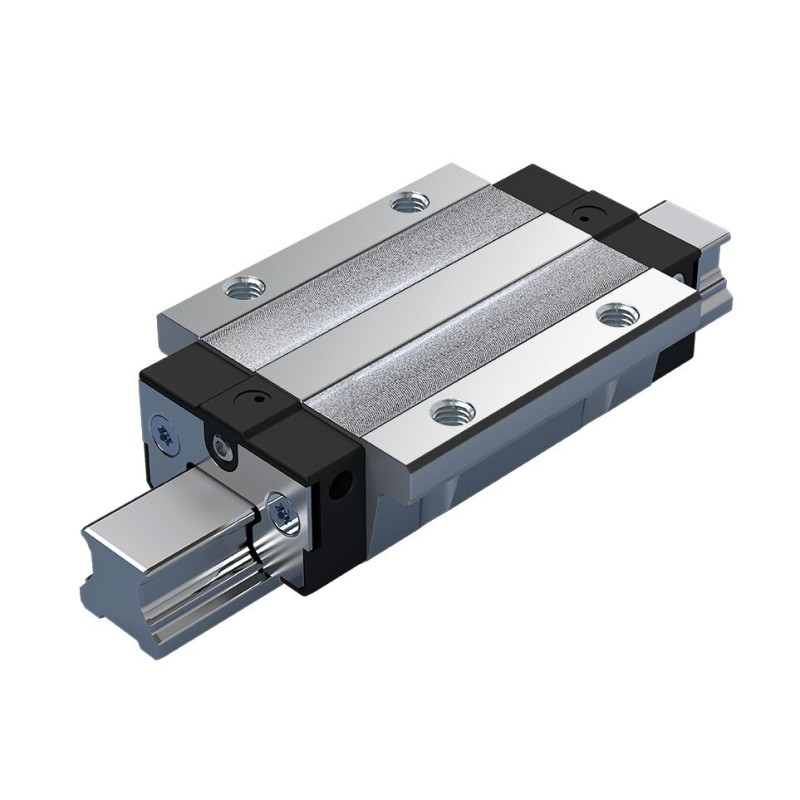

The Compact Line ball runner block is precise and characterized by the following product features:
Size 30
Format FLS - flanged, long, standard height
Runner block body made of unalloyed steel CS
Preload class C1: Low preload
Accuracy class N: Normal
Without ball chain
With initial lubrication and preservation
Runner block body in standard version
Overall length of the runner block = 119.7 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Features
- Area of application: For high rigidity requirements
- Load capacity: Very high
- For mounting from above and below
