Physical size and weight
| Dimension S9 thread diameter |
M2,5
|
| Height of guide rail H2 |
17
mm |
| Height of runner block |
25.3
mm |
| Height runner block with guide rail |
30
mm |
| Length of runner block |
91
mm |
| Net weight |
0.53
kg |
| Width of runner block |
63
mm |
Other properties
| Accuracy class |
P - Precise
|
| Ball chain |
Without ball chain (standard)
|
| Dimension A |
63
mm |
| Dimension A1 |
31.5
mm |
| Dimension A2 |
20
mm |
| Dimension A3 |
21.5
mm |
| Dimension B |
91
mm |
| Dimension B tolerance |
+ 0.5
|
| Dimension B1 |
65.6
mm |
| Dimension E1 |
53
mm |
| Dimension E2 |
40
mm |
| Dimension E8 |
29
mm |
| Dimension E9 |
10.15
mm |
| Dimension H |
30
mm |
| Dimension H1 |
25.3
|
| Dimension H2 |
17
mm |
| Dimension K1 |
19.8
mm |
| Dimension K2 |
19.8
mm |
| Dimension K3 |
5.65
mm |
| Dimension K4 |
5.65
mm |
| Dimension N1 |
7.7
mm |
| Dimension N6 |
10
mm |
| Dimension N6 tolerance |
± 0.5
|
| Dimension S1 |
5.3
mm |
| Dimension S2 |
M6
|
| Dimension S5 |
6
mm |
| Dimension S9 |
M2,5x6 mm
|
| Dimension S9 lead |
6
mm |
| Dimension T |
60
mm |
| Dimension T1 min |
13
mm |
| Dimension V1 |
6
mm |
| Dynamic load capacity C100 |
18100
N |
| Dynamic load capacity C50 |
22800
N |
| Dynamic longitudinal moment load capacity ML100 |
210
Nm |
| Dynamic longitudinal moment load capacity ML50 |
260
Nm |
| Dynamic torsional moment load capacity Mt100 |
190
Nm |
| Dynamic torsional moment load capacity Mt50 |
240
Nm |
| Format |
FLS - flange, long, standard height
|
| Friction coefficient μ |
0.002 ... 0.003
|
| Lube nipple |
Without lube nipple
|
| Lubrication |
Pre-lubricated, preserved
|
| Maximum acceleration rate amax |
500
m/s² |
| Maximum permissible linear speed vmax |
5
m/s |
| Model |
Compact Line ball runner block
|
| Nominal size |
20
|
| Note: Dynamic longitudinal moment load capacity ML100 |
Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.
|
| Note: Dynamic longitudinal moment load capacity ML50 |
Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.
|
| Note: Dynamic torsional moment load capacity Mt100 |
Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.
|
| Note: Dynamic torsional moment load capacity Mt50 |
Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.
|
| Note: Friction coefficient μ |
Friction coefficient µ without seal friction
|
| Note: Max. acceleration amax |
If F<sub>comb</sub>◡<gt/> 2.8 • F<sub>pr</sub> : a<sub>max</sub> = 50 m/s<sup>2</sup>
|
| Note: Permissible ambient temperature (min. ... max.) |
100 °C admissible for a short time.
|
| Note: dynamic load capacity C100 |
Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.
|
| Note: dynamic load capacity C50 |
Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.
|
| Permissible ambient temperature (min. ... max.) |
-10 °C ... +80 °C
|
| Pitch T guide rail |
60
mm |
| Preload class |
C1 - Low preload
|
| Seal |
SS - Standard seal
|
| Static load capacity C0 |
27100
N |
| Static longitudinal moment load capacity ML0 |
320
Nm |
| Static torsional moment load capacity Mt0 |
290
Nm |
| Version |
Ball rail system
|
Description

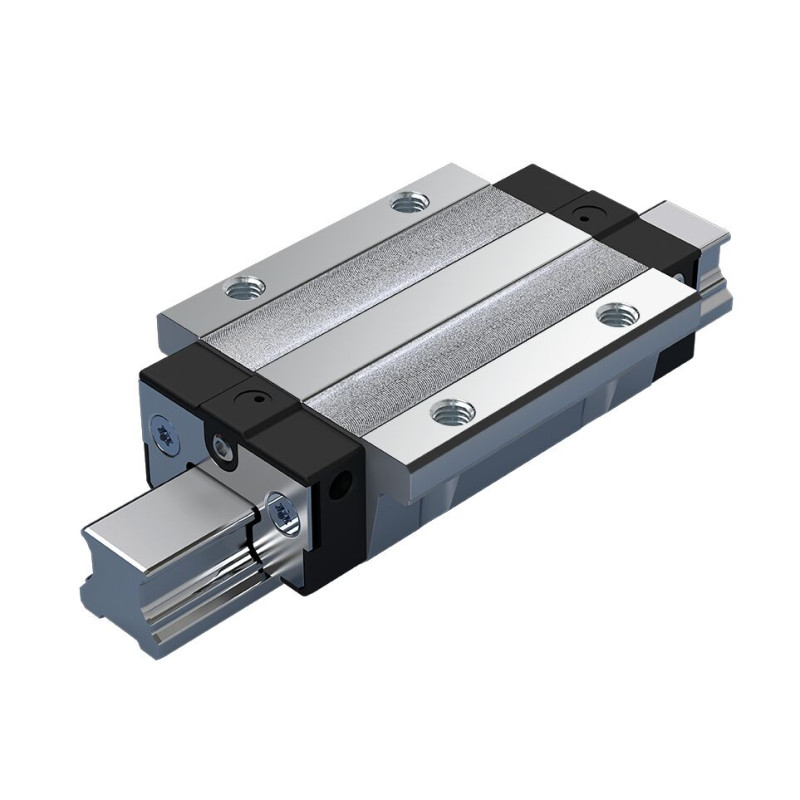

The Compact Line ball runner block is precise and characterized by the following product features:
Size 20
Format FLS - flange, long, standard height
Runner block body made of unalloyed steel CS
Preload class C1: Low preload
Accuracy class P: Precise
Without ball chain
With initial lubrication and preservation
Runner block body in standard version
Overall length of the runner block = 91 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Without lube nipple
Features
- Area of application: For high rigidity requirements
- Load capacity: Very high
- For mounting from above and below
