Physical size and weight
| Net weight |
0.332
kg |
| Outer diameter D |
45
mm |
Other properties
| Nominal size |
30
|
| Dynamic load capacity C |
2500
N |
| Maximum permissible linear speed vmax |
2
m/s |
| Note: maximum permissible speed vmax |
In case of prolonged periods of use at speeds above 1 m/s, an increase in temperature and reduction in service life is to be expected depending on the load.
|
| Operating temperature (min. … max.) |
-30 °C ... +100 °C
|
| Note: permissible operating temperature (min. ... max.) |
At temperatures above 100 °C, only bright metal ball transfer units without a felt seal should be used. Make allowance for reduction in load capacity. Use high-temperature lubricant! Follow the manufacturer’s instructions! The existing lubricant oil may have to be washed out.
|
| Static load capacity C0 |
6000
N |
| Maximum operating temperature |
+ 100
|
| Minimum operating temperature |
- 30
|
| Product information |
Ball transfer unit with bottom hole on request
|
| Dimension b |
8.2
mm |
| Tolerance c |
+ 0.2
|
| Dimension D |
45
mm |
| Tolerance D |
±0.08
|
| Dimension D1 |
55
mm |
| Dimension dW |
30.162
mm |
| Dimension h |
13.8
mm |
| Dimension H |
37.5
mm |
| Tolerance h |
± 0.3
|
Description

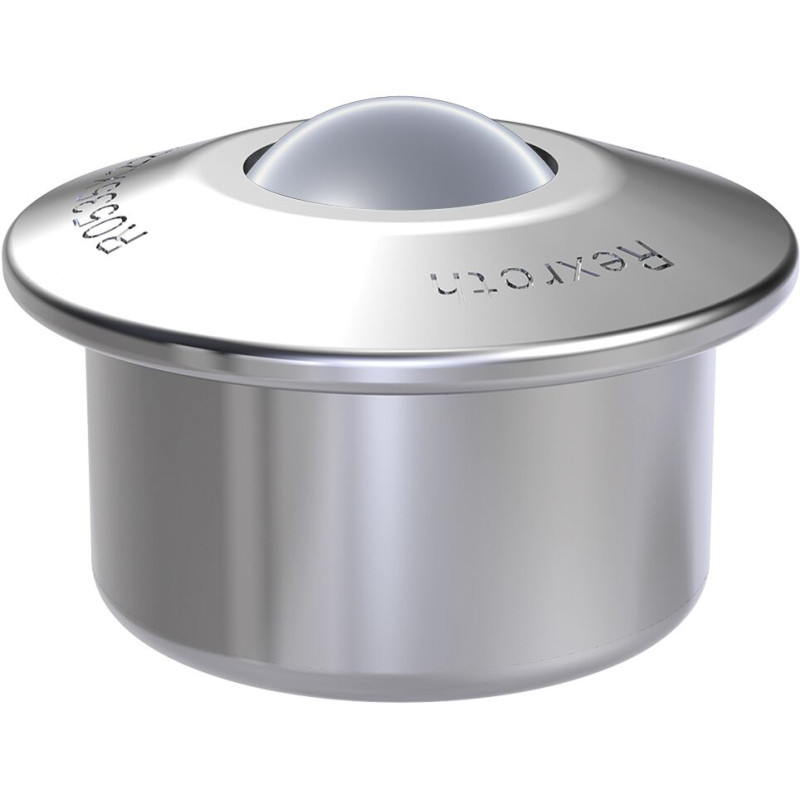

Ball transfer unit with reinforced steel housing
Galvanized cover and housing, balls made from anti-friction bearing steel
Size = 30
With felt seal, lubricated
Features
- With sheet steel housing
- Reinforced housing and cover
- For heavy impact loads
- Cover and housing galvanized
- Balls made from antifriction bearing steel 1.3505
Catalog (1)
CAD (4)
Manual (1)
| Name |
Material Number |
| R081004501 |
