Physical size and weight
| Net weight |
3.677
kg |
| Outer diameter D |
100
mm |
Other properties
| Nominal size |
60
|
| Dynamic load capacity C |
9700
N |
| Maximum permissible linear speed vmax |
2
m/s |
| Note: maximum permissible speed vmax |
In case of prolonged periods of use at speeds above 1 m/s, an increase in temperature and reduction in service life is to be expected depending on the load.
|
| Operating temperature (min. … max.) |
-30 °C ... +100 °C
|
| Note: permissible operating temperature (min. ... max.) |
At temperatures above 100 °C, only bright metal ball transfer units without a felt seal should be used. Make allowance for reduction in load capacity. Use high-temperature lubricant! Follow the manufacturer’s instructions! The existing lubricant oil may have to be washed out.
|
| Static load capacity C0 |
20000
N |
| Maximum operating temperature |
+ 100
|
| Minimum operating temperature |
- 30
|
| Dimension a |
13
mm |
| Dimension b |
14.5
mm |
| Tolerance c |
+ 0.3
|
| Dimension D |
100
mm |
| Tolerance D |
±0.11
|
| Dimension D1 |
117
mm |
| Dimension dW |
60.325
mm |
| Dimension h |
29.5
mm |
| Dimension H |
77.5
mm |
| Tolerance h |
± 0.2
|
Description

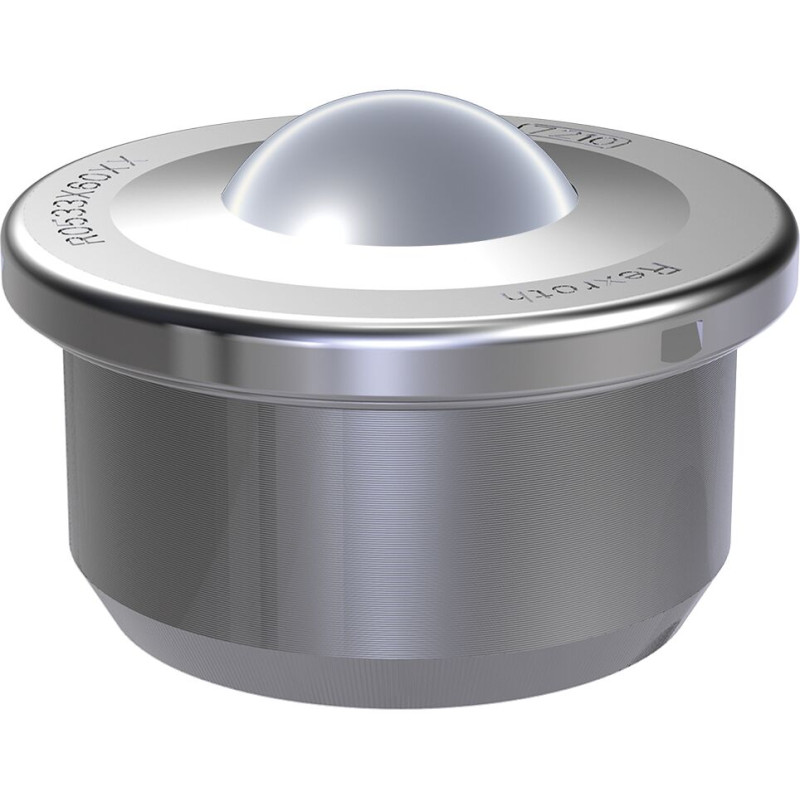

Ball transfer unit with solid steel housing
All parts galvanized, balls made from corrosion-resistant steel
Size = 60
With felt seal, lubricated
Features
- With solid steel housing
- For high loads
- Alternatively available with polymer wiper seal
- All parts galvanized
- Balls made from corrosion-resistant steel 1.3541 / 1.4034
- With felt seal
