Physical size and weight
| Net weight |
11.003
kg |
| Outer diameter D |
145
mm |
Other properties
| Dimension D |
145
mm |
| Dimension dW |
90
mm |
| Dimension G thread |
Rp 1/8
|
| Dimension h |
25
mm |
| Dimension H |
115
mm |
| Dimension h1 |
30
mm |
| Dimension H1 (profiled rail systems) |
79
|
| Dimension S |
9
mm |
| Dimension S1 (profiled rail systems) |
15
mm |
| Dimension Tk |
125
mm |
| Dynamic load capacity C |
25000
N |
| Maximum operating temperature |
+ 100
|
| Maximum permissible linear speed vmax |
2
m/s |
| Minimum operating temperature |
- 30
|
| Nominal size |
90
|
| Note: maximum permissible speed vmax |
In case of prolonged periods of use at speeds above 1 m/s, an increase in temperature and reduction in service life is to be expected depending on the load.
|
| Note: permissible operating temperature (min. ... max.) |
At temperatures above 100 °C, only bright metal ball transfer units without a felt seal should be used. Make allowance for reduction in load capacity. Use high-temperature lubricant! Follow the manufacturer’s instructions! The existing lubricant oil may have to be washed out.
|
| Operating temperature (min. … max.) |
-30 °C ... +100 °C
|
| Static load capacity C0 |
70000
N |
| Tolerance D |
±0.08
|
| Tolerance H |
± 0.2
|
Description

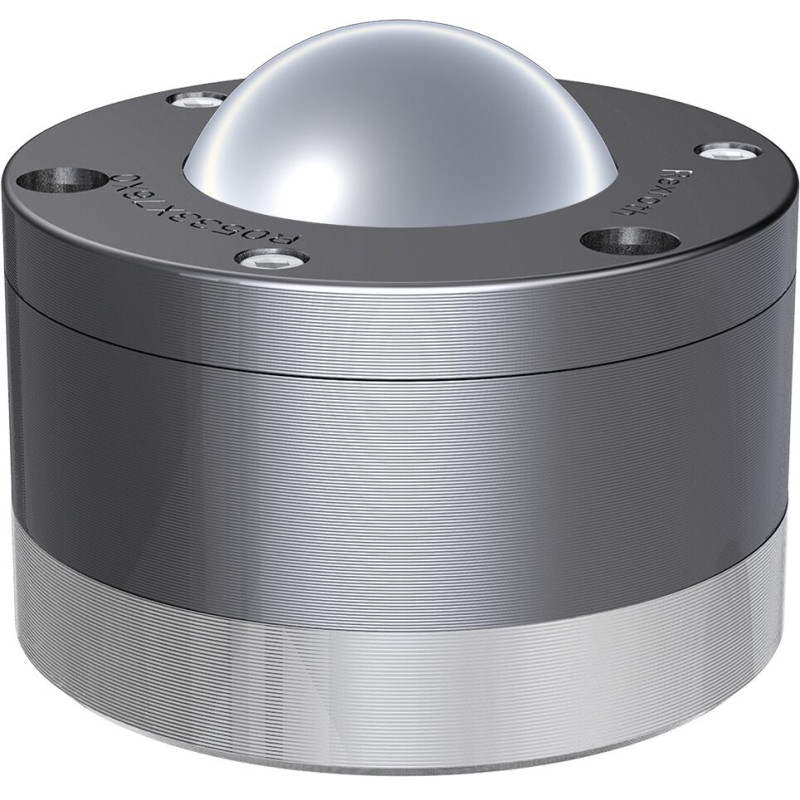

Ball transfer unit with solid steel housing
Bright metal, balls made from anti-friction bearing steel
Size = 90
With felt seal, lubricated
Features
- With solid steel housing and cover
- For very high loads
- Surface in bright metal
- Balls made from antifriction bearing steel 1.3505
- With felt seal
