Physical size and weight
| Net weight |
0.196
kg |
| Outer diameter D |
45
mm |
Other properties
| Nominal size |
30
|
| Dynamic load capacity C |
150
N |
| Note: dynamic load capacity C |
at 20 °C
|
| Maximum permissible linear speed vmax |
2
m/s |
| Note: maximum permissible speed vmax |
In case of prolonged periods of use at speeds above 1 m/s, an increase in temperature and reduction in service life is to be expected depending on the load.
|
| Operating temperature (min. … max.) |
+30 °C
|
| Note: permissible operating temperature (min. ... max.) |
For temperatures over 100°C, only load balls made from bare metal without a felt seal may be used. Take into account the reduction in load capacity. Use high-temperature lubricant! Follow the instructions of the manufacturer! The existing lubricant oil may have to be washed out.
|
| Static load capacity C0 |
150
N |
| Note: static load capacity C0 |
at 20 °C
|
| Maximum operating temperature |
+ 30
|
| Product information |
Ball transfer unit with bottom hole on request
|
| Dimension b |
8.2
mm |
| Dimension D |
45
mm |
| Tolerance D |
-0.25
|
| Dimension D1 |
55
mm |
| Dimension DB |
45
mm |
| Tolerance DB |
+ 1
|
| Dimension dW |
29.9
mm |
| Dimension h |
13.6
mm |
| Dimension H |
37
mm |
| Tolerance h |
± 0.3
|
| Dimension s |
2.5
mm |
Description

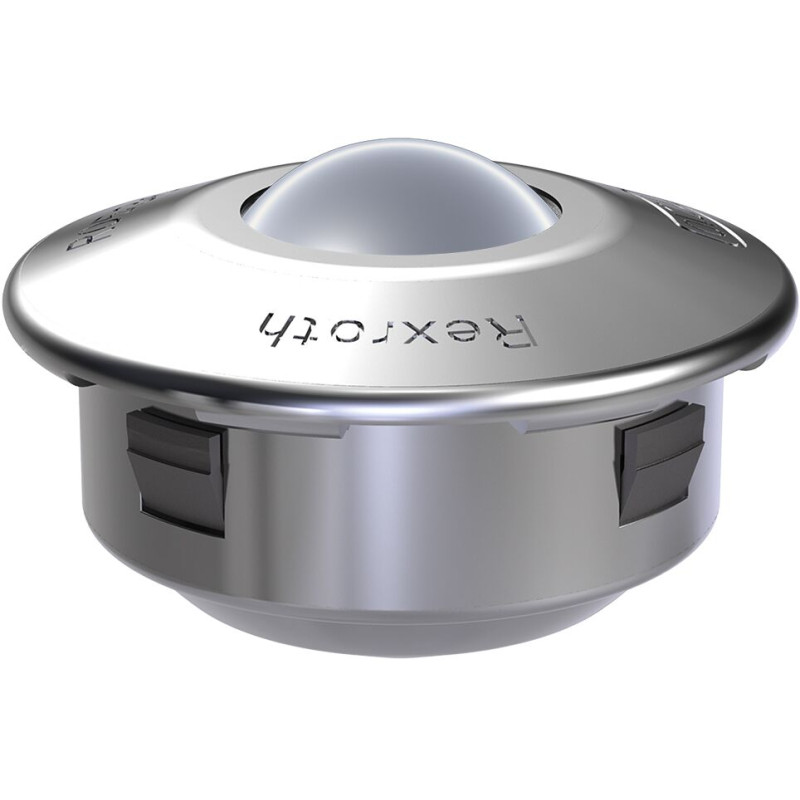

Ball transfer unit, with clip as fastening element
Galvanized cover and housing, balls made from anti-friction bearing steel
Size = 30
Load ball made from plastic
With felt seal, preserved
Features
- With fastening element
- Easily mountable and extractable from the load side
- Fixing is by means of spring clips, which permit generous tolerances in the mounting hole
- Reinforced cover to withstand heavy impact loads
- Load ball made from PA66
- Cover and housing galvanized
- Balls made from antifriction bearing steel 1.3505
- With dry felt seal
