Physical size and weight
| Net weight |
6.6
g |
| Outer diameter D |
12.6
mm |
Other properties
| Nominal size |
8
|
| Dynamic load capacity C |
100
N |
| Maximum permissible linear speed vmax |
2
m/s |
| Note: maximum permissible speed vmax |
In case of prolonged periods of use at speeds above 1 m/s, an increase in temperature and reduction in service life is to be expected depending on the load.
|
| Operating temperature (min. … max.) |
-30 °C ... +100 °C
|
| Note: permissible operating temperature (min. ... max.) |
At temperatures above 100 °C, only bright metal ball transfer units without a felt seal should be used. Make allowance for reduction in load capacity. Use high-temperature lubricant! Follow the manufacturer’s instructions! The existing lubricant oil may have to be washed out.
|
| Static load capacity C0 |
200
N |
| Maximum operating temperature |
+ 100
|
| Minimum operating temperature |
- 30
|
| Product information |
Without felt seal
|
| Dimension a |
1.9
mm |
| Dimension b |
3.2
mm |
| Tolerance c |
+ 0.2
|
| Dimension D |
12.6
mm |
| Tolerance D |
±0.055
|
| Dimension D1 |
17
mm |
| Dimension dW |
7.938
mm |
| Dimension h |
4.8
mm |
| Dimension H |
11.2
mm |
| Tolerance h |
± 0.15
|
Description

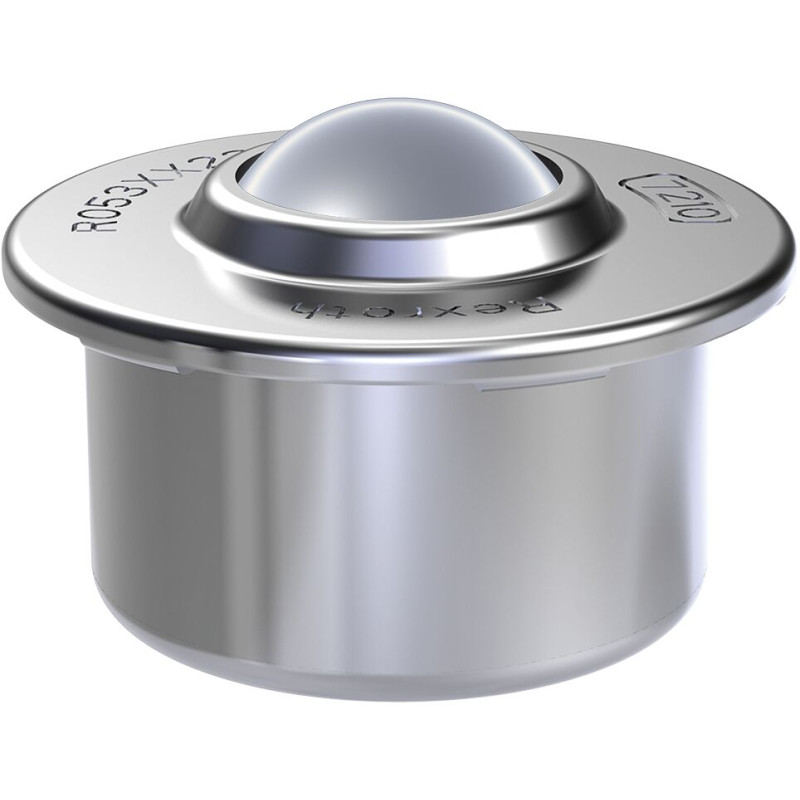

Ball transfer unit
All parts made from corrosion-resistant steel
Size = 8
Without felt seal, preserved
Features
- With sheet steel housing
- Extremely small ball transfer unit
- For general applications
- All parts made from corrosion-resistant steel
- Balls made from 1.3541 / 1.4034
