Physical size and weight
| Length of linear bushing |
45
mm |
| Net weight |
0.097
kg |
| Outer diameter D |
32
mm |
| Shaft diameter d |
20
mm |
Other properties
| Breakaway force |
12
N |
| Dimension C h12 |
45
mm |
| Dimension C1 H13 |
31.2
mm |
| Dimension C2 |
1.6
mm |
| Dimension D |
32
mm |
| Dimension D1 |
30.5
mm |
| Footnote breakaway force |
One wiper seal: Multiply value with factor 0.5
|
| Footnote friction force FR |
One wiper seal: Multiply value with factor 0.5
|
| Footnote maximum dynamic load capacity Cmax |
The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
|
| Footnote minimum dynamic load capacity Cmin |
The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
|
| Footnote shaft radial clearance h6 |
Determined from working bore diameter and shaft tolerance statistics. Recommended housing bore tolerance: H6 or H7.
|
| Format of linear bushings |
– Closed
|
| Friction coefficient μ |
0.001 ... 0.004
|
| Lubrication |
Not lubricated
|
| Maximum acceleration rate amax |
100
m/s² |
| Maximum dynamic load capacity Cmax |
1390
N |
| Maximum permissible linear speed vmax |
2.5
m/s |
| Note: friction coefficient μ |
Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.
|
| Note: permissible ambient temperature (min. ... max.) |
Only unsealed linear bushings with steel ball retainers may be used at higher temperatures. Make allowance for reductions in load capacity.
|
| Permissible ambient temperature (min. ... max.) |
-10 °C ... +80 °C
|
| Seal |
1 integrated wiper seal
|
| Series |
Standard (metal)
|
| Type |
Linear bushing
|
| Version |
Normal
|

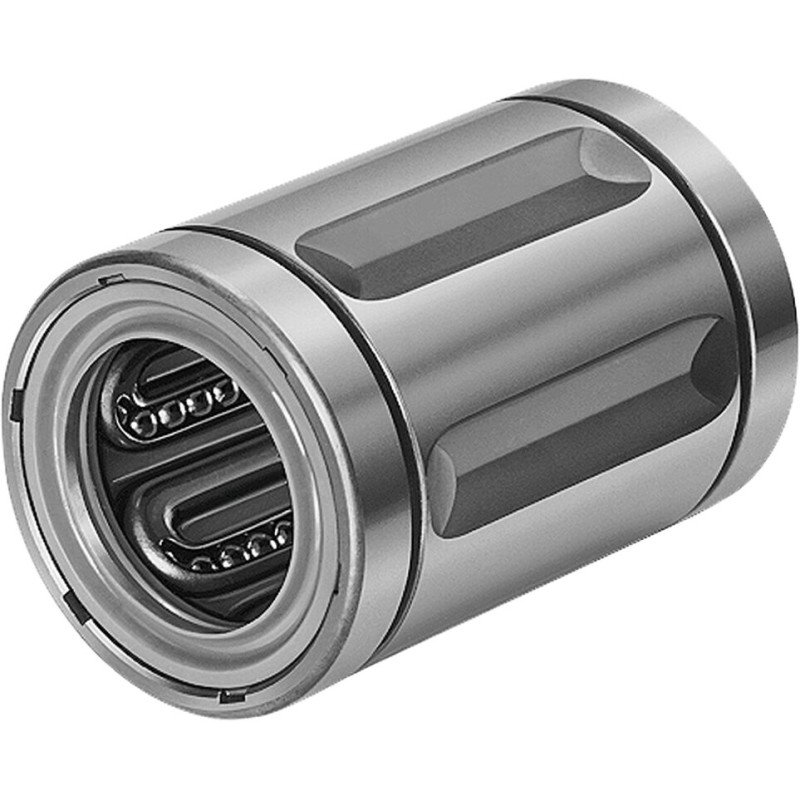

Description
standard linear bushing
Standard (metal)
Closed
Shaft diameter d = 20
With one seal
Version: Standard
Features
- Rugged all-metal design with steel ball retainer for harsh environments and heavy contamination
- Many pockets acting as lubricant reservoirs for extended lubrication intervals or lubrication for life
- Steel ball retainer (shaft diameters 3, 4 and 10 with plastic strip made of POM and shaft diameters 5 and 8 made of PA)
- Closed, for self-supporting shafts
- Balls made of rolling bearing steel
- For use in woodworking, foundries, cement plants
- Pockets collect any dirt that may have worked its way in to prevent the linear bushing from jamming.
- No wiper seals, come with integrated steel retaining rings; higher temperatures allowed with shaft diameters 12 and higher
- Hardened and ground outer sleeve
