R161914282
HK 1505 KR

R161914282
  • Availability: 2-5 days
  • Weight: 0.17 KG
  • Part number: R161914282
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R161914282
Physical size and weight
Net weight 0.166 kg
Dimension S2 thread diameter (profiled rail systems) M4
Other properties
Accessories for Runner block
Nominal size 15
Tightening torque 4 Nm
Holding force 1200 N
Permissible ambient temperature (min. ... max.) ​0 °C ... +70 °C
Footnote 1 holding force The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
Dimension A (profiled rail systems) 47 mm
Dimension B (profiled rail systems) 25 mm
Dimension C 19
Dimension E1 17 mm
Dimension E2 (profiled rail systems) 17 mm
Dimension E3 (profiled rail systems) 4 mm
Dimension H 24 mm
Dimension H1 (profiled rail systems) 19
Dimension L 44 mm
Dimension L1 30 mm
Dimension L2 33 mm
Dimension N3 (profiled rail systems) 5 mm
Footnote Dimension H1 Ball runner block .H. (...High...) Spacer plate necessary.
Description

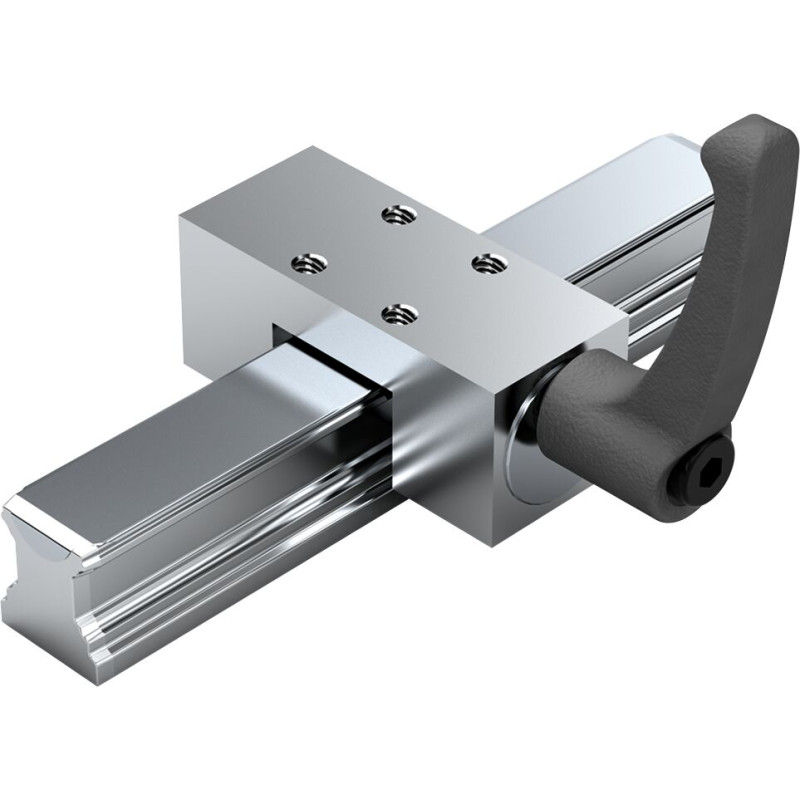

Manual clamping unit HK*) for ball rail systems Size = 15 Can be used on all SNS ball guide rails *)Zimmer GmbH

Features
  • Simple and safe design in compact format
  • Manually operated Clamping Unit without auxiliary power
  • Freely adjustable hand lever
  • Precise positioning
  • Manual clamping unit
  • 500,000 clamping cycles (B10d value)
  • Symmetrical force application on ball guide rail via floating contact profiles
  • Holding forces up to 2000 N
  • Can be used on all SNS ball guide rails
Catalog (1)
PDF Ball rail systems High Precision BSHP (EN)
CAD (2)
File R161914282.igs (ALL)
File R161914282.stp (ALL)
Manual (2)
PDF R161914282 (EN)
PDF Ball rail systems High Precision BSHP (EN)
