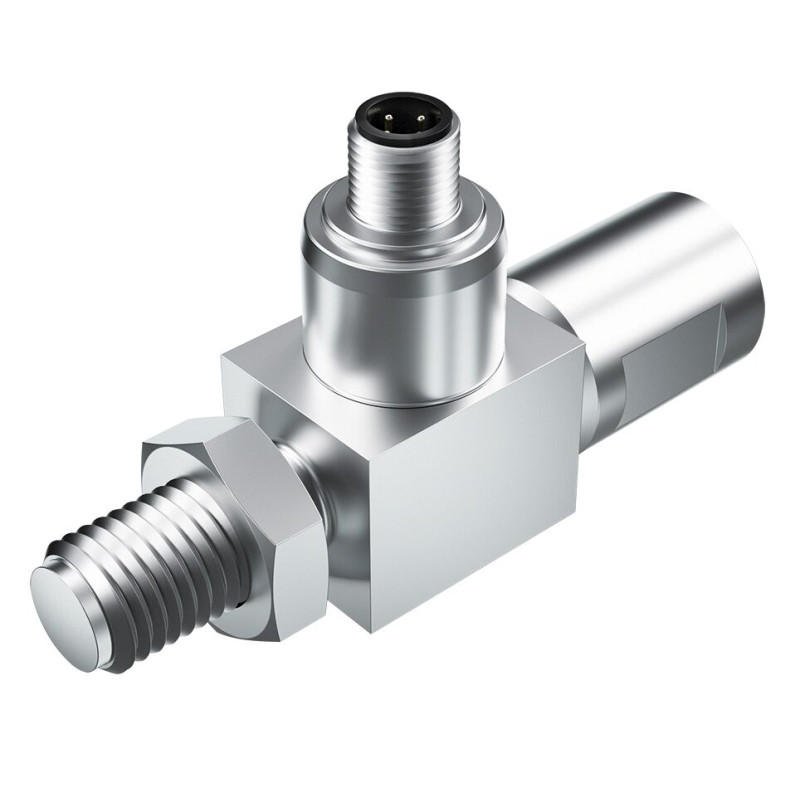

R156693001
FS-75-10-1

R156693001
  • Availability: On request
  • Weight: 2.70 KG
  • Part number: R156693001
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R156693001
Physical size and weight
Bandwidth 1 kHz
Bandwidth tolerance ± 0.2
Bandwidth with tolerance 1 kHz ±0,2
Net weight 2.7 kg
Outer diameter D 65 mm
Other properties
Breaking load (of the measuring range) 300 %
Connection Male connector M12x1 4-pin
Dimension A1 98.5 mm
Dimension A2 50 mm
Dimension D 65 mm
Dimension H1 195
Dimension H3 50 mm
Dimension H4 85 mm
Dimension SW1 55 mm
Dimension SW2 65 mm
Hysteresis (of the measuring range) ​ 0.1
Maximum operating temperature + 80
Minimum operating temperature - 30
Nominal size 70
Non-linearity (of the measuring range) ± 0.3
Operating load (of the measuring range) 150 %
Operating temperature (min. … max.) -30 °C ... +80 °C
Output signal 0.132 V
Output signal (measuring range) with tolerance ​0 ... +10 V
Output signal tolerance ± 0.01
Output signal with tolerance 0,132 V ±0,01
Protection class IP67
Temperature drift above measuring range (of the measuring range per Kelvin) ​ 0.02
Temperature drift zero point (of the measuring range per Kelvin) ​ 0.02
Features
  • Based on strain gauge technology
  • For compressive forces and low traction forces
  • Robust and long-term stability
  • Corrosion-resistant stainless steel version
  • High reproducibility
  • Easy mounting directly at the EMC piston rod
