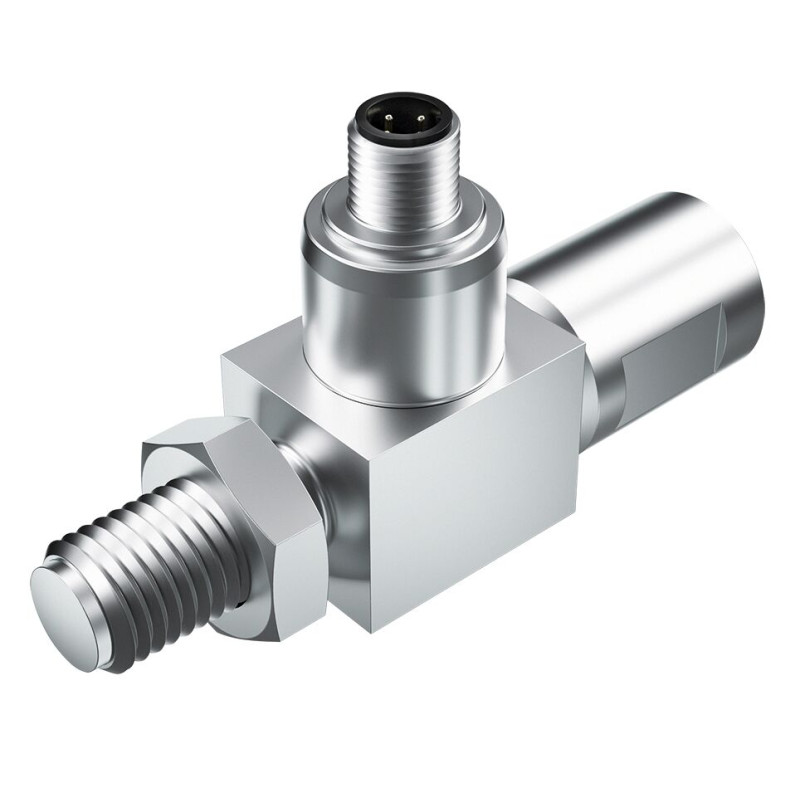

R156643001
FS-10-10-1

R156643001
  • Availability: On request
  • Weight: 0.40 KG
  • Part number: R156643001
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R156643001
Physical size and weight
Bandwidth 1 kHz
Bandwidth tolerance ± 0.2
Bandwidth with tolerance 1 kHz ±0,2
Net weight 0.4 kg
Outer diameter D 24.5 mm
Other properties
Breaking load (of the measuring range) 300 %
Compensated temperature (min. … max.) -20 °C ... +80 °C
Connection Male connector M12x1 4-pin
Current consumption 8 mA
Dimension A1 69 mm
Dimension A2 26 mm
Dimension D 24.5 mm
Dimension H1 100
Dimension H3 33 mm
Dimension H4 35 mm
Dimension SW1 22 mm
Dimension SW2 24 mm
Hysteresis (of the measuring range) ​ 0.1
Maximum operating temperature + 80
Minimum operating temperature - 30
Nominal size 7
Non-linearity (of the measuring range) ± 0.3
Operating load (of the measuring range) 150 %
Operating temperature (min. … max.) -30 °C ... +80 °C
Output signal 0.909 V
Output signal (measuring range) with tolerance ​0+10 V
Output signal tolerance ± 0.03
Output signal with tolerance 0,909 V ±0,03
Protection class IP67
Temperature drift above measuring range (of the measuring range per Kelvin) ​ 0.02
Temperature drift zero point (of the measuring range per Kelvin) ​ 0.02
Tightening torque 166 Nm
Features
  • Based on strain gauge technology
  • For compressive forces and low traction forces
  • Robust and long-term stability
  • Corrosion-resistant stainless steel version
  • High reproducibility
  • Easy mounting directly at the EMC piston rod
CAD (1)
File Kraftsensor Smart Function Kit Pressing (ALL)
Catalog (1)
PDF Smart Function Kit for pressing and joining applications (EN)
Manual (2)
PDF Smart Function Kit - Software (EN)
PDF Smart Function Kit for pressing and joining applications (EN)
