Other properties
| Bearing temperature max |
+ 80
|
| Bearing temperature min |
- 15
|
| Category |
B
|
| Dimension d1 |
38
mm |
| Dimension D1 g6 |
63
mm |
| Dimension d2 |
33.8
mm |
| Dimension D5 |
93
mm |
| Dimension D6 |
78
mm |
| Dimension D7 |
9
mm |
| Dimension L |
127
mm |
| Dimension L10 |
100.5
mm |
| Dimension L14 |
70
mm |
| Dimension L3 |
15
mm |
| Dimension L4 |
30
mm |
| Dimension L5 |
11.5
mm |
| Dimension Sx |
5
mm |
| Direction of lead |
Right
|
| Dynamic load capacity C |
91400
N |
| Hole pattern |
BB1
|
| Maximum operating temperature |
+ 80
|
| Maximum permissible linear speed vmax (m/min) |
93
m/min |
| Minimum operating temperature |
- 10
|
| Nominal size |
40 x 25 R x 6 - 8
|
| Note: dynamic load capacity C |
The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).
|
| Note: maximum permissible speed vmax |
See "Characteristic speed d0 • n" (see General Technical Notes and Information, "Technical Data" (Technical Notes), and "Critical speed ncr" (see General Technical Notes and Information, "Project planning notes")
|
| Note: permissible operating temperature (min. ... max.) |
Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.
|
| Note: static load capacity C0 |
The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).
|
| Nut type |
FED-E-B single nut with flange
|
| Operating temperature (min. … max.) |
-10 °C ... +80 °C
|
| Screw drive seal |
With seal
|
| Series |
High-performance series
|
| Static load capacity C0 |
171700
N |
| Storage temperature (min. … max.) |
-15 °C ... +80 °C
|
Description

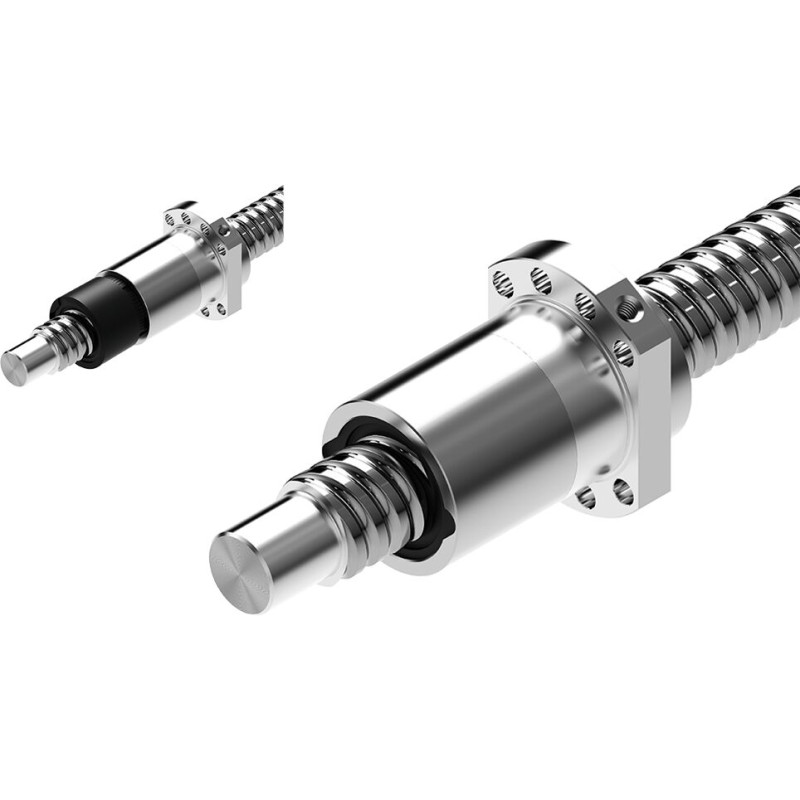

Single nut with flange FED-E-B with standard seal and standard axial clearance
Nominal diameter d0 = 40
Lead P = 25 (right)
Ball diameter Dw = 6
Number of ball track turns i = 8
Features
- Mounting dimensions similar to DIN 69051, Part 5 flange type B
- Nut for significantly increasing the dynamic and static load capacity
- With seals
- Preload class: C0, C00, C1, C2
- Tolerance grade: T3 (for sizes as per the product overview for screws, see general technical notes and information, “Product description”), T5, T7, T9
