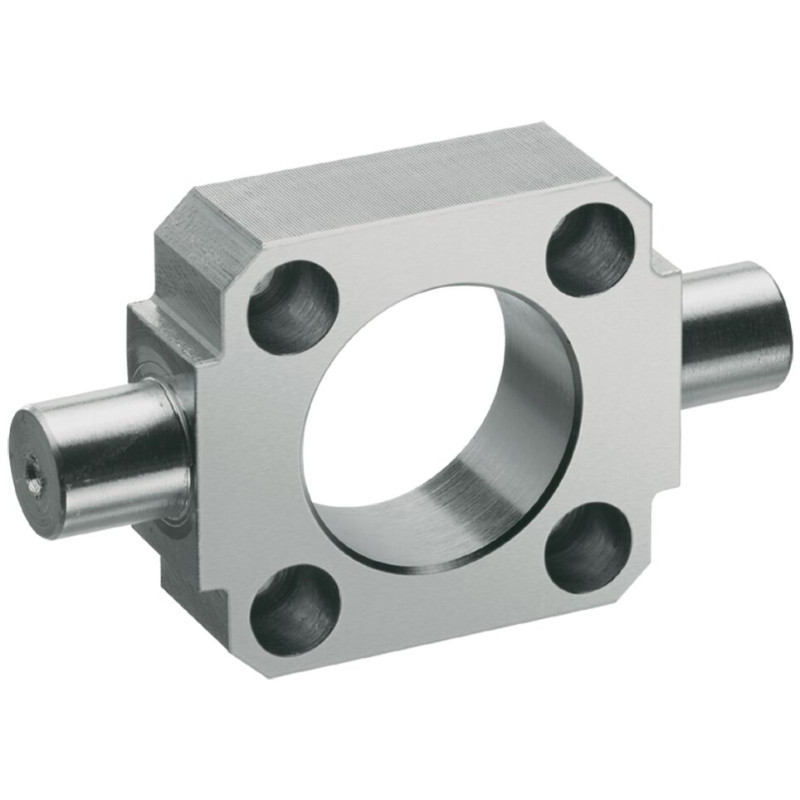

R15615A001
EMC80

R15615A001
  • Availability: on request
  • Weight: 1.62 KG
  • Part number: R15615A001
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R15615A001
Physical size and weight
Net weight 1.62 kg
Other properties
Fastening elements for electromechanical cylinders Trunnion
Nominal size 80
Surface finishing galvanized
Material of electromechanical cylinders Cast iron with spheroidal graphite
Dimension D H11 55 mm
Dimension D1 11 mm
Dimension D2 18 mm
Dimension L1 16 mm
Dimension TD e9 20 mm
Dimension Tg 72 mm
Dimension TG 72 mm
Dimension TG tolerance ± 0.2
Dimension Tk 28 mm
Dimension TL h14 20 mm
Dimension TM h14 110 mm
Dimension UW 100 mm
Features
  • Group 3, option 01
  • included in group 3, option 03
  • Material: Galvanized cast iron with spheroidal graphite
CAD (2)
File R15615A001.stp (ALL)
File R15615A001.igs (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
