R349951900
EMC80/100

R349951900
  • Availability: on request
  • Weight: 0.42 KG
  • Part number: R349951900
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R349951900
Physical size and weight
Net weight 0.42 kg
Other properties

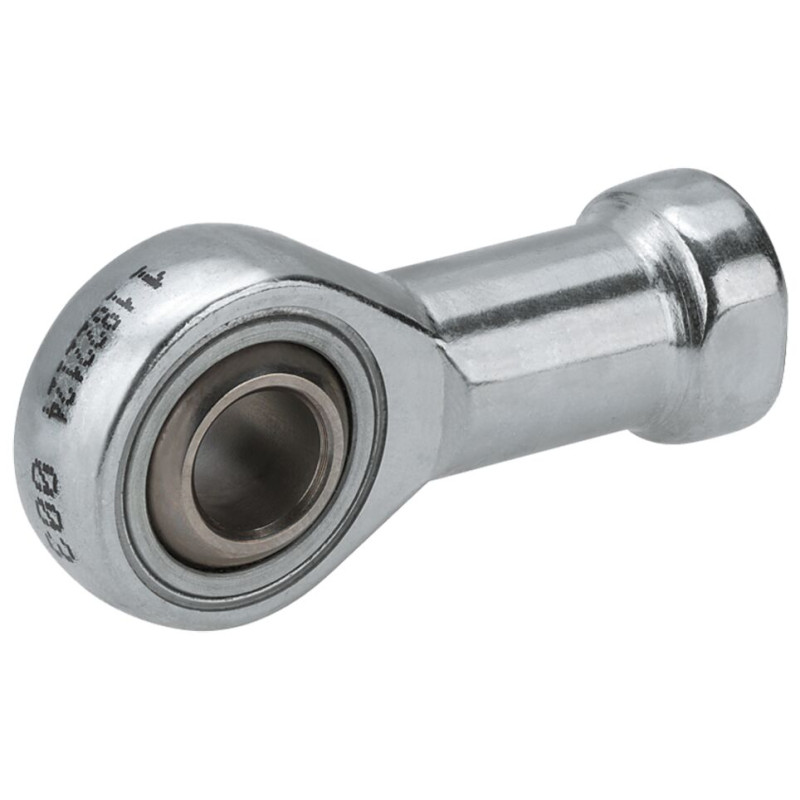

Fastening elements for electromechanical cylinders Female spherical rod end bearing
Nominal size 80100
Material of electromechanical cylinders Stainless steel
Dimension AA 34 mm
Dimension Av min. 33 mm
Dimension CE 77 mm
Dimension CN H7 20 mm
Dimension EN 25 mm
Dimension EN tolerance - 0.1
Dimension EU max. 18 mm
Dimension KK M20x1.5 mm
Dimension LF 25 mm
Dimension SW 32 mm
Dimension Z 8 °
Features
  • Group 2, option 07
  • Material: Stainless steel
CAD (2)
File R349951900.stp (ALL)
File R349951900.igs (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
