R349941200
EMC63/80 &

R349941200
  • Availability: on request
  • Weight: 0.53 KG
  • Part number: R349941200
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R349941200
Physical size and weight
Height of guide rail H2 20 mm
Net weight 0.531 kg
Other properties
Angle α Fmax 110,70
Dimension A 42 mm
Dimension A tolerance ± 0.2
Dimension B1 f8 65 mm
Dimension B2 23 mm
Dimension B4 20 mm
Dimension C 13
Dimension D1 H7 20 mm
Dimension D2 H12 11 mm
Dimension D3 H13 18 mm
Dimension F x 45° 1.6 mm
Dimension H1 40
Dimension H2 20 mm
Dimension H2 tolerance ± 0.1
Dimension T3 11 mm
Dimension T3 tolerance - 0.4

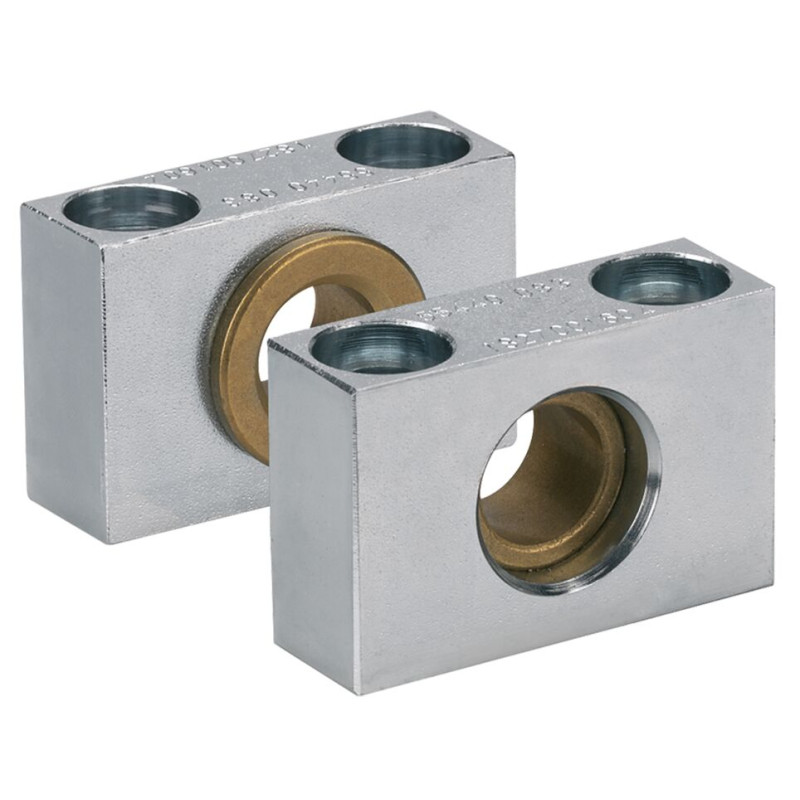

Fastening elements for electromechanical cylinders Bearing for trunnion
Material of electromechanical cylinders Steel
Note: Angle α Fmax Bearing for trunnion for vertical load; if α Fmax is not complied with, a positive lock must be added
Surface finishing galvanized
Features
  • included in group 3, option 03; group 5, option 03
  • Material: Galvanized steel, with female connectors made of sintered bronze
