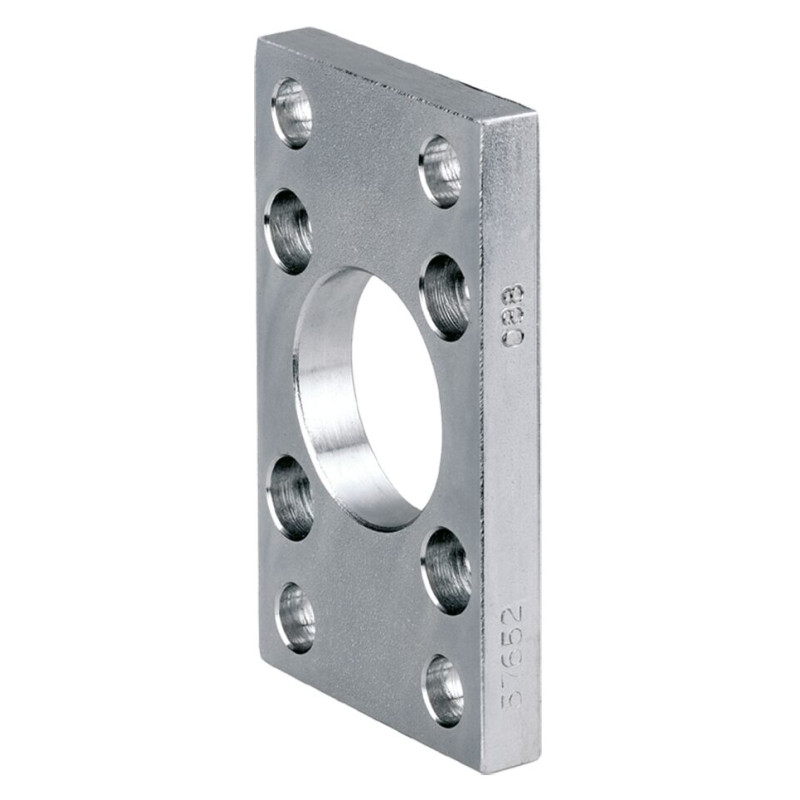

R349942400
EMC63 &

R349942400
  • Availability: on request
  • Weight: 0.70 KG
  • Part number: R349942400
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R349942400
Physical size and weight
Net weight 0.701 kg
Other properties
Dimension D H11 45 mm
Dimension D1 H13 9 mm
Dimension D2 H13 15 mm
Dimension E max. 75 mm
Dimension FB 9 mm
Dimension L4 6 mm
Dimension MF 12 mm
Dimension MF tolerance ± 0.1
Dimension R 50 mm
Dimension R tolerance ± 0.2
Dimension TF 100 mm
Dimension TF tolerance ± 0.2
Dimension TG1 56.5 mm
Dimension TG1 tolerance ± 0.2
Dimension UF 125 mm
Dimension UF tolerance ± 0.2
Fastening elements for electromechanical cylinders Flange fastening
Material Galvanized steel
Material of electromechanical cylinders Steel
Nominal size 63
Surface finishing galvanized
Features
  • Group 3, option 04
  • Material: Galvanized steel
CAD (2)
File R349942400.igs (ALL)
File R349942400.stp (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC-HP (EN)
PDF Electromechanical cylinders EMC (EN)
Manual (2)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
