R349940600
EMC63 &

R349940600
  • Availability: on request
  • Weight: 0.79 KG
  • Part number: R349940600
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R349940600
Physical size and weight
Net weight 790.967 g
Other properties

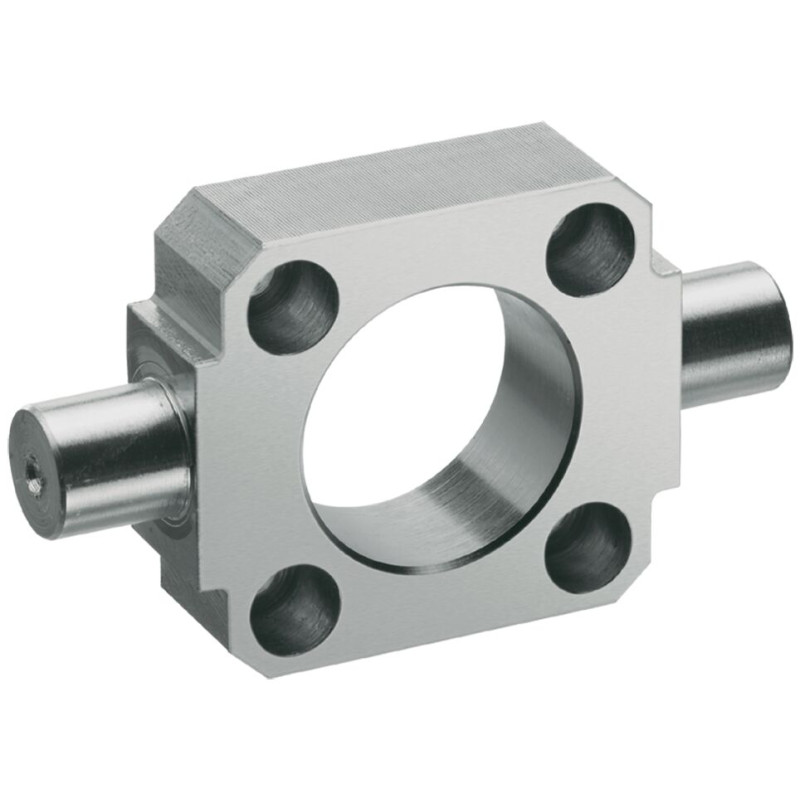

Fastening elements for electromechanical cylinders Trunnion
Nominal size 63
Surface finishing galvanized
Material of electromechanical cylinders Cast iron with spheroidal graphite
Dimension D H11 45 mm
Dimension D1 9 mm
Dimension D2 15 mm
Dimension L1 10 mm
Dimension TD e9 20 mm
Dimension Tg 56.5 mm
Dimension TG 56.5 mm
Dimension TG tolerance ± 0.2
Dimension Tk 24 mm
Dimension TL h14 20 mm
Dimension TM h14 90 mm
Dimension UW 75 mm
Features
  • Group 3, option 01
  • included in group 3, option 03
  • Material: Galvanized cast iron with spheroidal graphite
CAD (2)
File R349940600.igs (ALL)
File R349940600.stp (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
