R349951800
EMC50/63

R349951800
  • Availability: on request
  • Weight: 0.23 KG
  • Part number: R349951800
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R349951800
Physical size and weight
Net weight 0.23 kg
Other properties

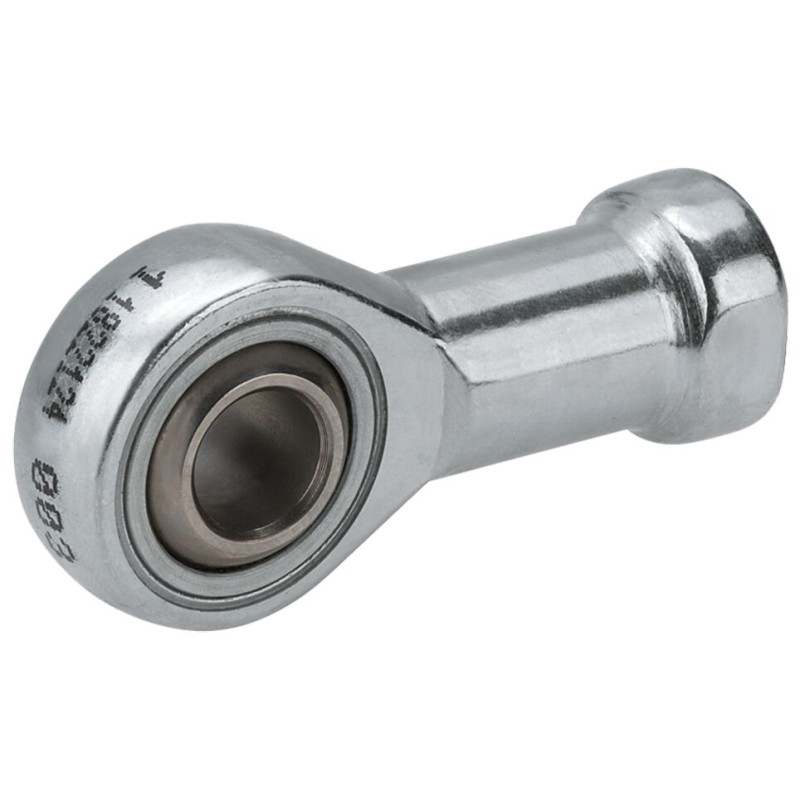

Fastening elements for electromechanical cylinders Female spherical rod end bearing
Nominal size 5063
Material of electromechanical cylinders Stainless steel
Dimension AA 29 mm
Dimension Av min. 24 mm
Dimension CE 64 mm
Dimension CN H7 16 mm
Dimension EN 21 mm
Dimension EN tolerance - 0.1
Dimension EU max. 15 mm
Dimension KK M16x1.5 mm
Dimension LF 21 mm
Dimension SW 24 mm
Dimension Z 8 °
Features
  • Group 2, option 07
  • Material: Stainless steel
