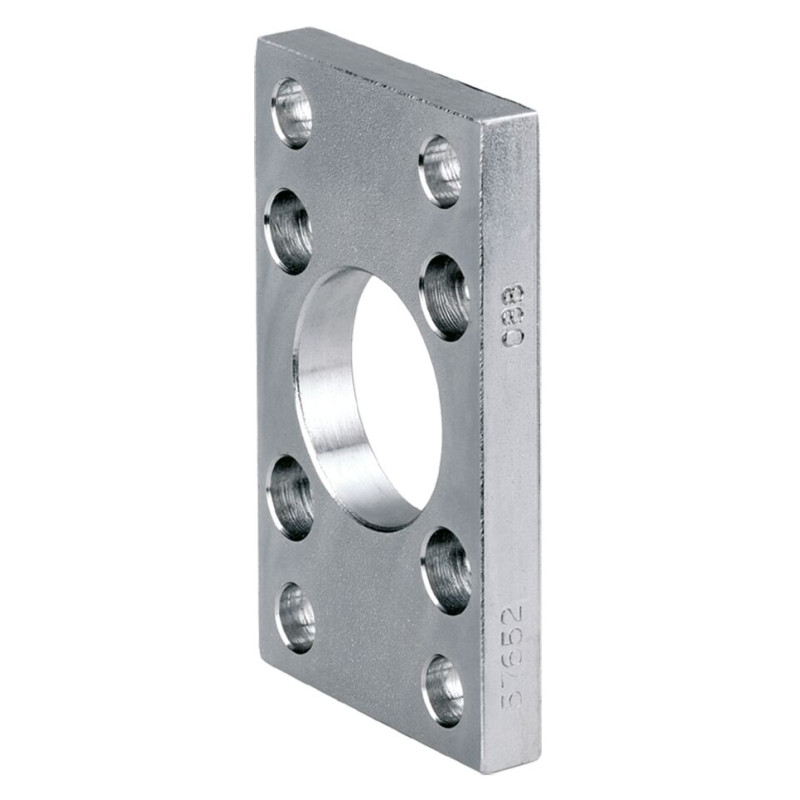

R349942300
EMC50 &

R349942300
  • Availability: on request
  • Weight: 0.52 KG
  • Part number: R349942300
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R349942300
Physical size and weight
Net weight 0.519 kg
Other properties
Fastening elements for electromechanical cylinders Flange fastening
Nominal size 50
Material Galvanized steel
Surface finishing galvanized
Material of electromechanical cylinders Steel
Dimension D H11 40 mm
Dimension D1 H13 9 mm
Dimension D2 H13 15 mm
Dimension E max. 65 mm
Dimension FB 9 mm
Dimension L4 6 mm
Dimension MF 12 mm
Dimension MF tolerance ± 0.1
Dimension R 45 mm
Dimension R tolerance ± 0.2
Dimension TF 90 mm
Dimension TF tolerance ± 0.2
Dimension TG1 46.5 mm
Dimension TG1 tolerance ± 0.2
Dimension UF 110 mm
Dimension UF tolerance ± 0.2
Features
  • Group 3, option 04
  • Material: Galvanized steel
CAD (2)
File R349942300.stp (ALL)
File R349942300.igs (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
