R349940500
EMC50 &

R349940500
  • Availability: on request
  • Weight: 0.50 KG
  • Part number: R349940500
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R349940500
Physical size and weight
Net weight 500.6 g
Other properties
Dimension D H11 40 mm
Dimension D1 9 mm
Dimension D2 15 mm
Dimension L1 10 mm
Dimension TD e9 16 mm
Dimension Tg 46.5 mm
Dimension TG 46.5 mm
Dimension TG tolerance ± 0.2
Dimension Tk 24 mm
Dimension TL h14 16 mm
Dimension TM h14 75 mm
Dimension UW 65 mm

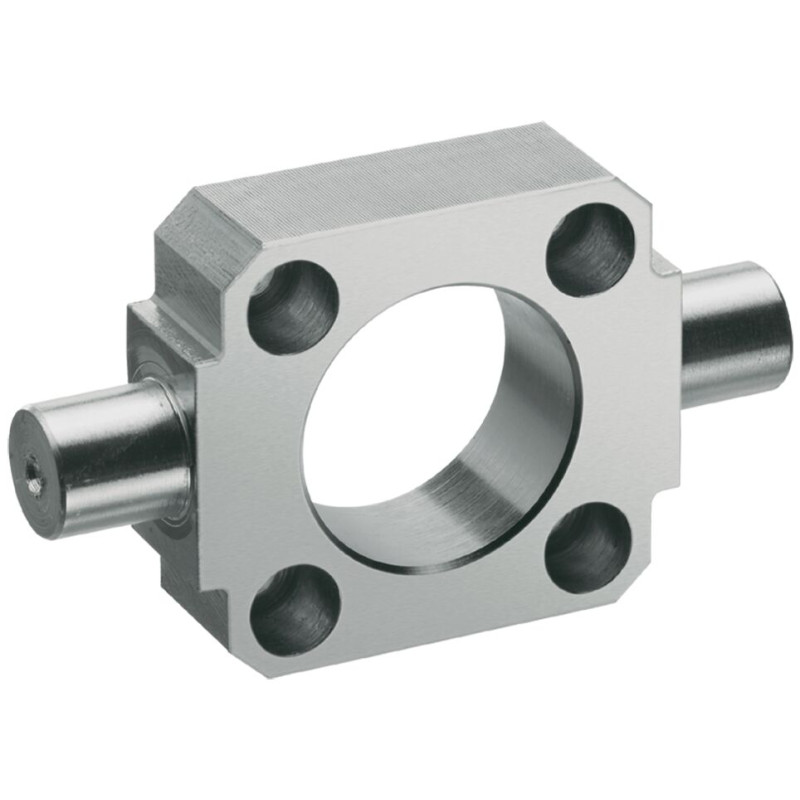

Fastening elements for electromechanical cylinders Trunnion
Material of electromechanical cylinders Cast iron with spheroidal graphite
Nominal size 50
Surface finishing galvanized
Features
  • Group 3, option 01
  • included in group 3, option 03
  • Material: Galvanized cast iron with spheroidal graphite
