R349951700
EMC40

R349951700
  • Availability: on request
  • Weight: 0.12 KG
  • Part number: R349951700
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R349951700
Physical size and weight
Net weight 0.115 kg
Other properties
Dimension AA 22 mm
Dimension Av min. 16 mm
Dimension CE 50 mm
Dimension CN H7 12 mm
Dimension EN 16 mm
Dimension EN tolerance - 0.1
Dimension EU max. 12 mm
Dimension KK M12x1.25 mm
Dimension LF 16 mm
Dimension SW 19 mm
Dimension Z 7 °

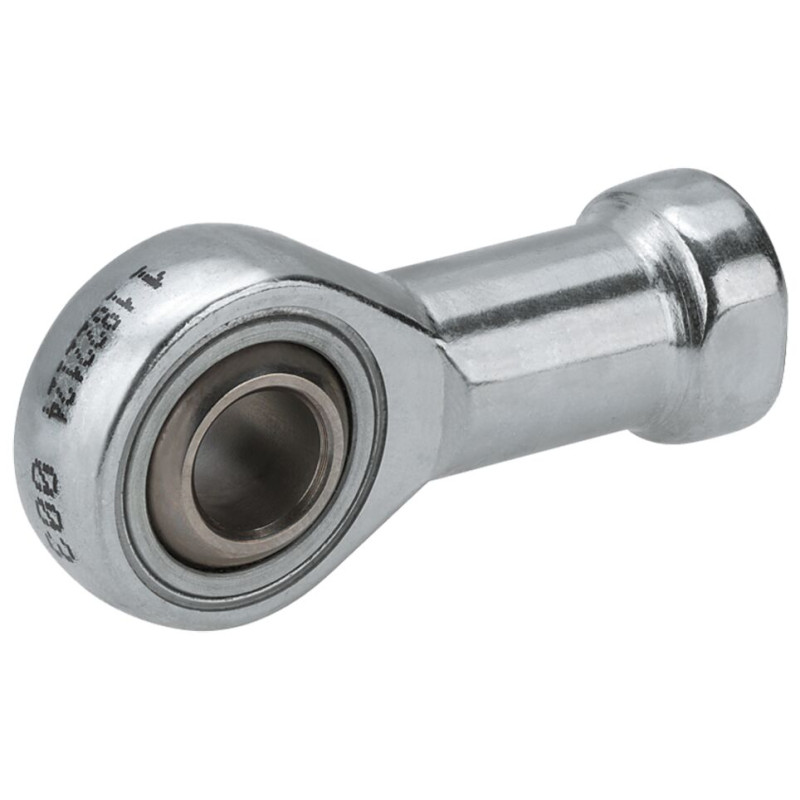

Fastening elements for electromechanical cylinders Female spherical rod end bearing
Material of electromechanical cylinders Stainless steel
Nominal size 40
Features
  • Group 2, option 07
  • Material: Stainless steel
