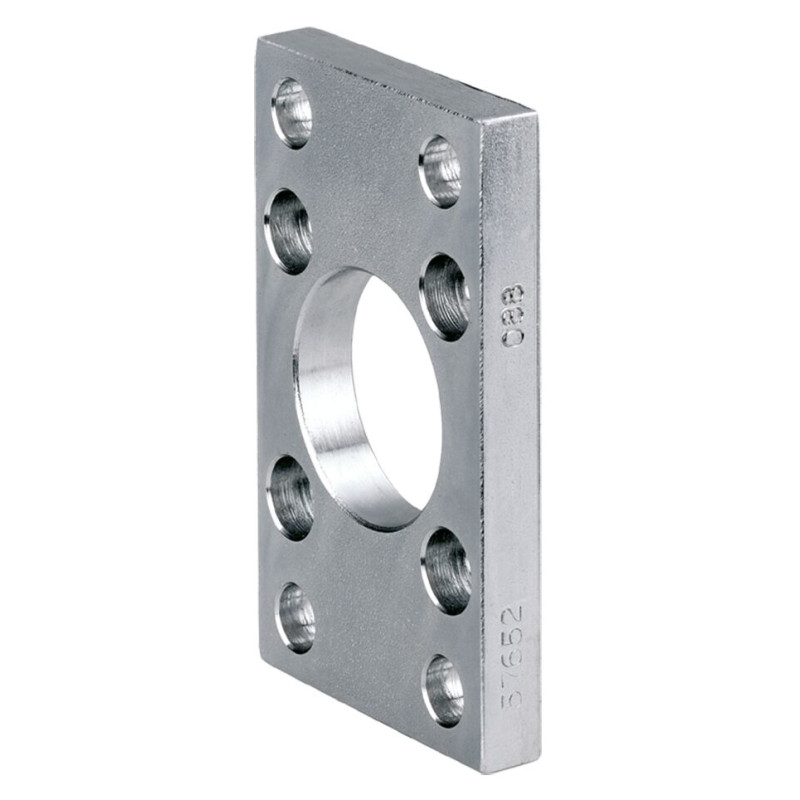

R349942200
EMC40 &

R349942200
  • Availability: on request
  • Weight: 0.29 KG
  • Part number: R349942200
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R349942200
Physical size and weight
Net weight 0.286 kg
Other properties
Fastening elements for electromechanical cylinders Flange fastening
Nominal size 40
Material Galvanized steel
Surface finishing galvanized
Material of electromechanical cylinders Steel
Dimension D H11 35 mm
Dimension D1 H13 6.6 mm
Dimension D2 H13 11 mm
Dimension E max. 55 mm
Dimension FB 9 mm
Dimension L4 4.5 mm
Dimension MF 10 mm
Dimension MF tolerance ± 0.1
Dimension R 36 mm
Dimension R tolerance ± 0.2
Dimension TF 72 mm
Dimension TF tolerance ± 0.2
Dimension TG1 38 mm
Dimension TG1 tolerance ± 0.2
Dimension UF 90 mm
Dimension UF tolerance ± 0.2
Features
  • Group 3, option 04
  • Material: Galvanized steel
CAD (2)
File R349942200.stp (ALL)
File R349942200.igs (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
