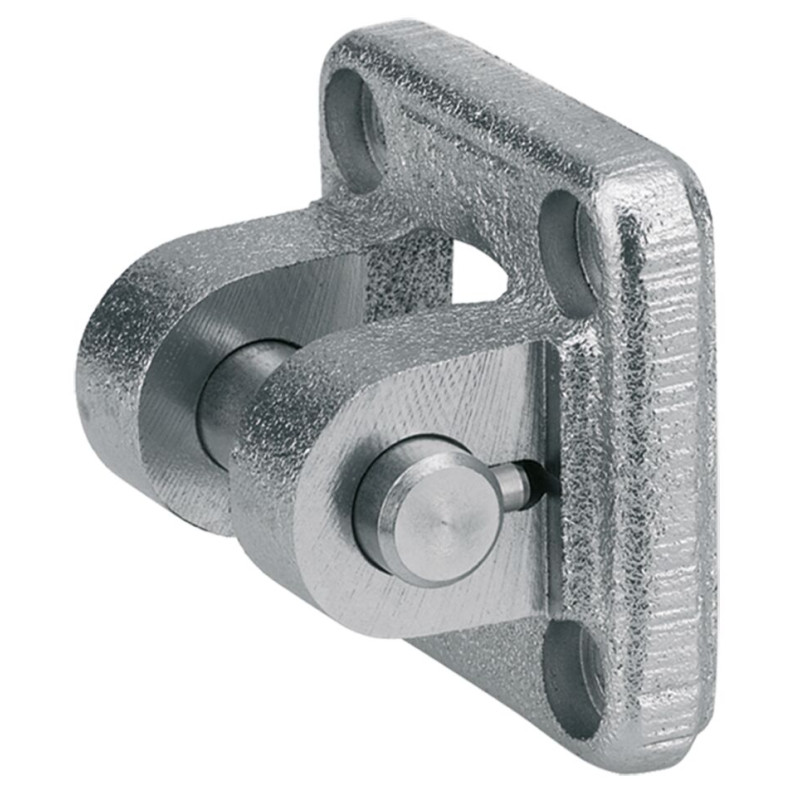

R349945200
EMC40 &

R349945200
  • Availability: on request
  • Weight: 0.14 KG
  • Part number: R349945200
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R349945200
Physical size and weight
Dimension hex socket head cap screw DIN 912 thread diameter M6
Hex socket head cap screw DIN 912 screw Dimension, length 18 mm
Net weight 0.141 kg
Outer diameter D 35 mm
Other properties
Dimension B3 4.3 mm
Dimension B3 tolerance ± 0.2
Dimension CF F7 12 mm
Dimension CG D10 16 mm
Dimension CP d12 40 mm
Dimension D 35 mm
Dimension D3 6.6 mm
Dimension D4 11 mm
Dimension E 55 mm
Dimension FM 25 mm
Dimension FM tolerance ± 0.2
Dimension L1 4.5 mm
Dimension L1 tolerance ± 0.5
Dimension L11 18 mm
Dimension L11 tolerance - 0.5
Dimension L4 5.5 mm
Dimension L4 tolerance ± 0.5
Dimension R4 20 mm
Dimension SR 12 mm
Dimension T 4 mm
Dimension T tolerance ± 0.2
Dimension TG tolerance ± 0.2
Dimension Tg 38 mm
Dimension hex socket head cap screws DIN 912 M6x18 mm
Fastening elements for electromechanical cylinders Clevis mount
Material of electromechanical cylinders Aluminum
Note: Maximum dynamic load Fmax EMC
Pitch T guide rail 4 mm
Surface finishing forged
Features
  • Group 1, option 01; group 5, option 08
  • Material: Aluminum/galvanized spheroidal graphite iron
CAD (2)
File R349945200 (ALL)
File R349945200 (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (EN)
