R349951600
EMC32

R349951600
  • Availability: on request
  • Weight: 0.08 KG
  • Part number: R349951600
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R349951600
Physical size and weight
Net weight 80.4 g
Other properties
Dimension AA 19 mm
Dimension Av min. 15 mm
Dimension CE 43 mm
Dimension CN H7 10 mm
Dimension EN 14 mm
Dimension EN tolerance - 0.1
Dimension EU max. 10.5 mm
Dimension KK M10x1.25 mm
Dimension LF 14 mm
Dimension SW 17 mm
Dimension Z 7 °

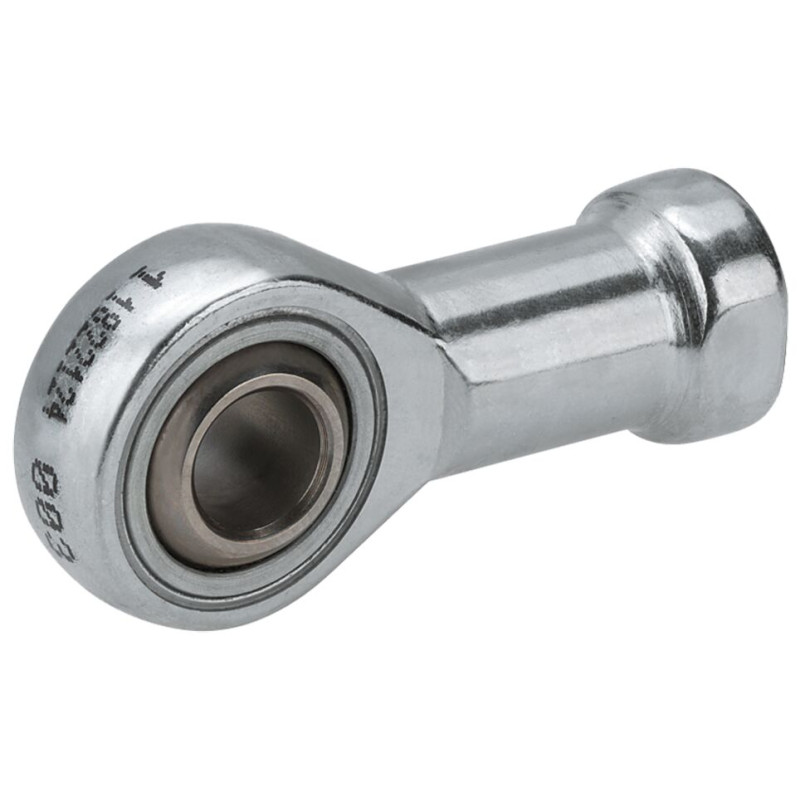

Fastening elements for electromechanical cylinders Female spherical rod end bearing
Material of electromechanical cylinders Stainless steel
Nominal size 32
Features
  • Group 2, option 07
  • Material: Stainless steel
