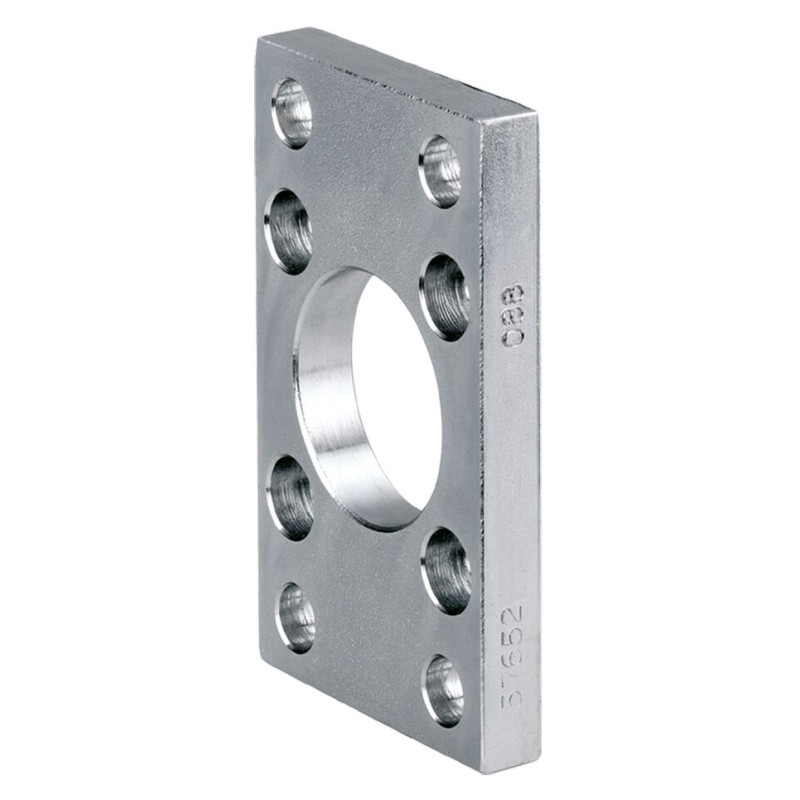

R349942100
EMC32 &

R349942100
  • Availability: on request
  • Weight: 0.24 KG
  • Part number: R349942100
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R349942100
Physical size and weight
Net weight 0.242 kg
Other properties
Fastening elements for electromechanical cylinders Flange fastening
Nominal size 32
Material Galvanized steel
Surface finishing galvanized
Material of electromechanical cylinders Steel
Dimension D H11 30 mm
Dimension D1 H13 6.6 mm
Dimension D2 H13 11 mm
Dimension E max. 50 mm
Dimension FB 7 mm
Dimension L4 4.5 mm
Dimension MF 10 mm
Dimension MF tolerance ± 0.1
Dimension R 32 mm
Dimension R tolerance ± 0.2
Dimension TF 64 mm
Dimension TF tolerance ± 0.2
Dimension TG1 32.5 mm
Dimension TG1 tolerance ± 0.2
Dimension UF 80 mm
Dimension UF tolerance ± 0.2
Features
  • Group 3, option 04
  • Material: Galvanized steel
CAD (2)
File R349942100.stp (ALL)
File R349942100.igs (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
