R349940900
EMC32 &

R349940900
  • Availability: on request
  • Weight: 0.25 KG
  • Part number: R349940900
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R349940900
Physical size and weight
Net weight 0.247 kg
Other properties
Angle α Fmax 180
Dimension A (profiled rail systems) 32 mm
Dimension A tolerance ± 0.2
Dimension B1 f8 46 mm
Dimension B2 (profiled rail systems) 18 mm
Dimension B4 15 mm
Dimension C 10.5
Dimension D1 H7 12 mm
Dimension D2 H12 6.6 mm
Dimension D3 H13 11 mm
Dimension F x 45° 1 mm
Dimension H1 (profiled rail systems) 30
Dimension H2 (profiled rail systems) 15 mm
Dimension H2 tolerance ± 0.1
Dimension T3 (profiled rail systems) 6.8 mm
Dimension T3 tolerance - 0.4

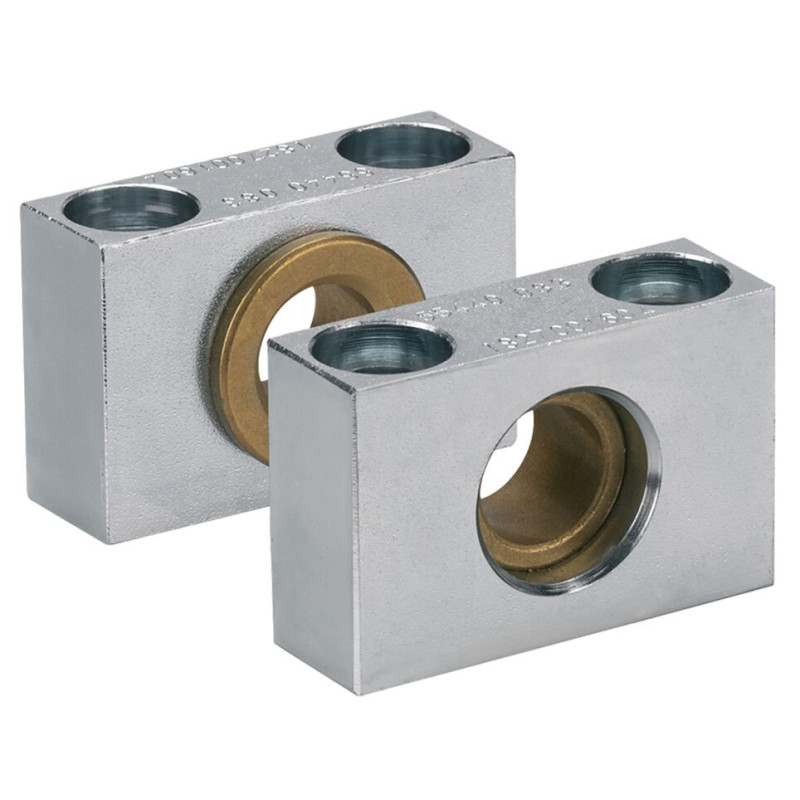

Fastening elements for electromechanical cylinders Bearing for trunnion
Footnote angle α Fmax Bearing for trunnion for vertical load; if α Fmax is not complied with, a positive lock must be added
Material of electromechanical cylinders Steel
Nominal size 32
Surface finishing galvanized
Features
  • included in group 3, option 03; group 5, option 03
  • Material: Galvanized steel, with female connectors made of sintered bronze
CAD (2)
File R349940900.stp (ALL)
File R349940900.igs (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC-HP (EN)
PDF Electromechanical cylinders EMC (EN)
Manual (2)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
