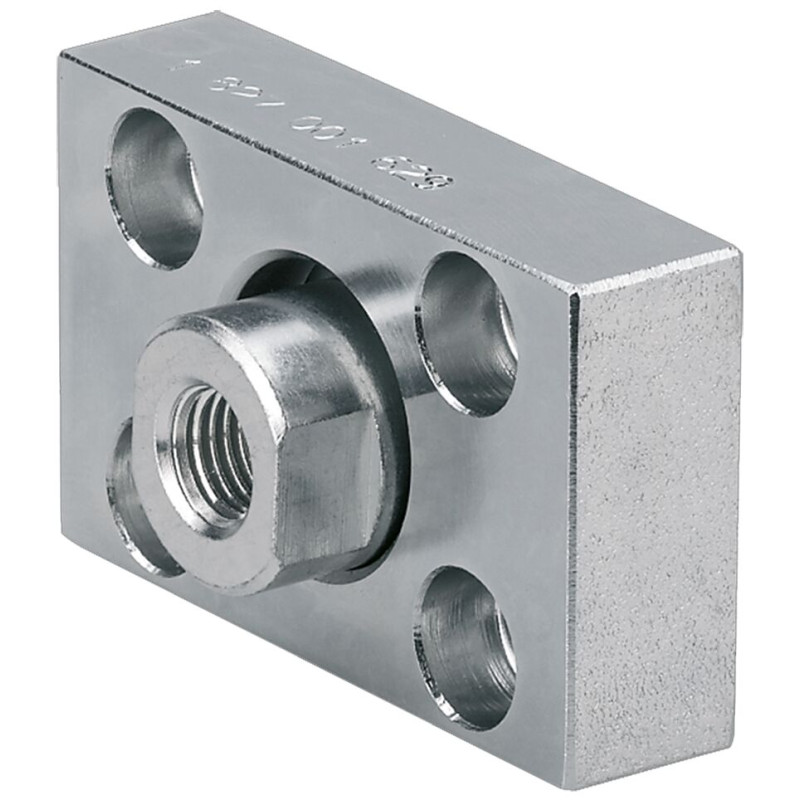

R349951100
EMC100XC M36X2

R349951100
  • Availability: on request
  • Weight: 3.25 KG
  • Part number: R349951100
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R349951100
Physical size and weight
Net weight 3.248 kg
Other properties
Dimension A1 (profiled rail systems) 125 mm
Dimension A2 (profiled rail systems) 125 mm
Dimension axial clearance 0.4 mm ... 0.95 mm
Dimension D1 H11 60 mm
Dimension D6 H13 18 mm
Dimension D7 H13 26 mm
Dimension E1 90 mm
Dimension E1 tolerance ± 0.3
Dimension E2 90 mm
Dimension E2 tolerance ± 0.3
Dimension H 55 mm
Dimension H1 (profiled rail systems) 30
Dimension KK M36x2 mm
Dimension of axial clearance max. 0.95 mm
Dimension of axial clearance min. 0.4 mm
Dimension of radial clearance max. 3.4 mm
Dimension of radial clearance min. 2.8 mm
Dimension radial clearance 2.8 mm ... 3.4 mm
Dimension SW 50 mm
Dimension T2 17 mm
Fastening elements for electromechanical cylinders Flexible coupling
Material of electromechanical cylinders Steel
Max. dynamic load 44000 bar
Nominal size 100XC
Surface finishing galvanized
Features
  • Group 2, option 03
  • Material: Galvanized steel
CAD (2)
File R349951100.stp (ALL)
File R349951100.igs (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC-HP (EN)
PDF Electromechanical cylinders EMC (EN)
Manual (2)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
