R349951000
EMC100XC M36X2

R349951000
  • Availability: on request
  • Weight: 3.67 KG
  • Part number: R349951000
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R349951000
Physical size and weight
Net weight 3.672 kg
Other properties

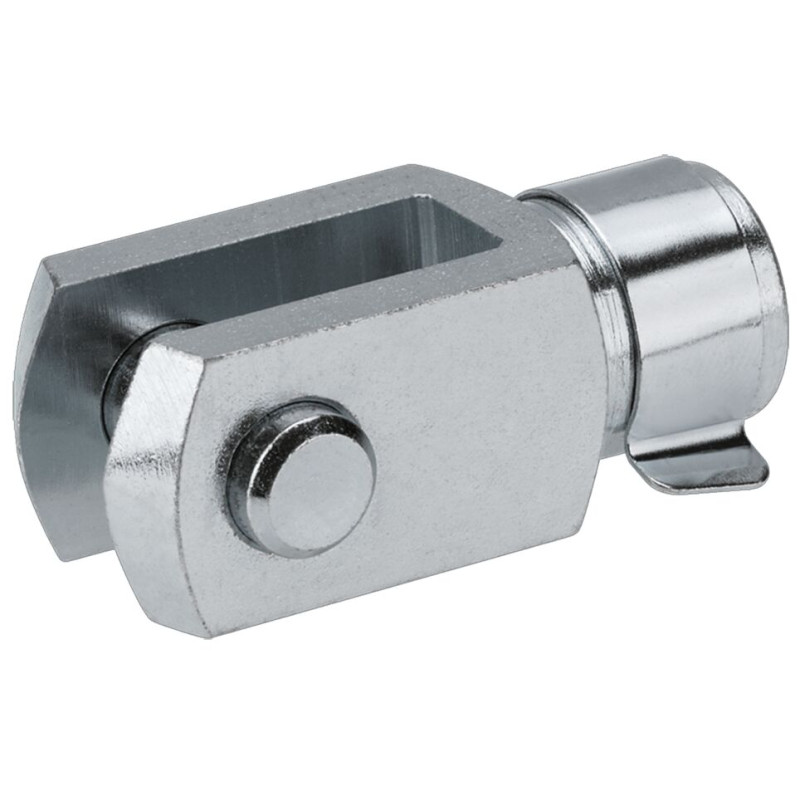

Fastening elements for electromechanical cylinders Fork clevis with internal thread
Nominal size 100XC
Surface finishing galvanized
Material of electromechanical cylinders Steel
Dimension BL 80 mm
Dimension CE 144 mm
Dimension CK e11 35 mm
Dimension CL 70 mm
Dimension CM 35 mm
Dimension D1 60 mm
Dimension ER 57
Dimension KK M36x2 mm
Dimension L1 54.5 mm
Dimension LE 72 mm
Features
  • Group 2, option 02
  • Material: Galvanized steel
