R15616A002
EMC100

R15616A002
  • Availability: on request
  • Weight: 2.22 KG
  • Part number: R15616A002
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R15616A002
Physical size and weight
Net weight 2.223 kg
Other properties
Dimension D H11 65 mm
Dimension D1 H13 11 mm
Dimension D2 H13 18 mm
Dimension E max. 120 mm
Dimension FB 14 mm
Dimension L4 9 mm
Dimension MF 16 mm
Dimension MF tolerance ± 0.1
Dimension R 75 mm
Dimension R tolerance ± 0.2
Dimension TF 150 mm
Dimension TF tolerance ± 0.2
Dimension TG1 89 mm
Dimension TG1 tolerance ± 0.2
Dimension UF 186 mm
Dimension UF tolerance ± 0.2

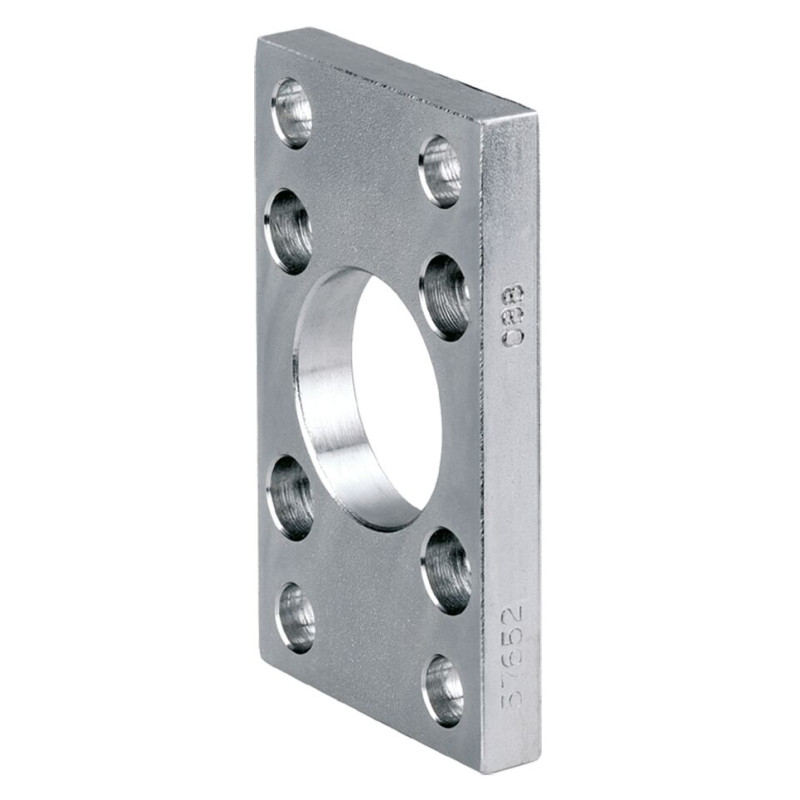

Fastening elements for electromechanical cylinders Flange fastening
Material Galvanized steel
Material of electromechanical cylinders Steel
Nominal size 100
Surface finishing galvanized
Features
  • Group 3, option 04
  • Material: Galvanized steel
CAD (2)
File R15616A002.stp (ALL)
File R15616A002.igs (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
Manual (2)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
