R156530068
EMC-115-HP

R156530068
  • Availability: on request
  • Weight: 7.20 KG
  • Part number: R156530068
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R156530068
Physical size and weight
Net weight 7.2 kg
Other properties

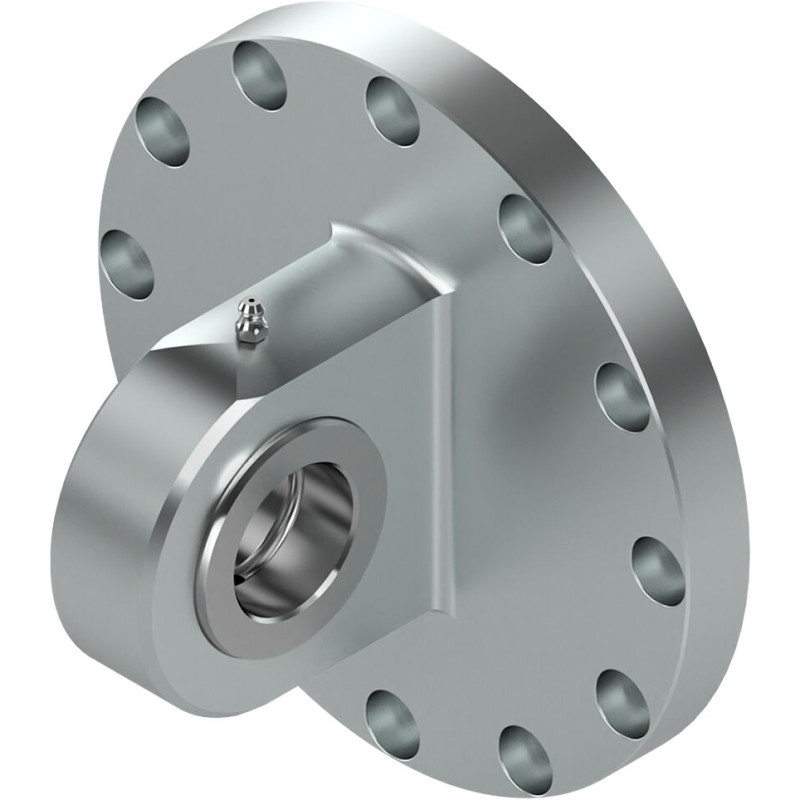

Fastening elements for electromechanical cylinders Pivot head
Dimension A H9 32 mm
Dimension C 10.5
Dimension D 198 mm
Dimension E 18 mm
Dimension H 21 mm
Dimension I 65 mm
Dimension K h12 32 mm
Dimension L 10 mm
Dimension RJ 40 mm
Features
  • Group 5, option 011
  • Material: Galvanized steel
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
