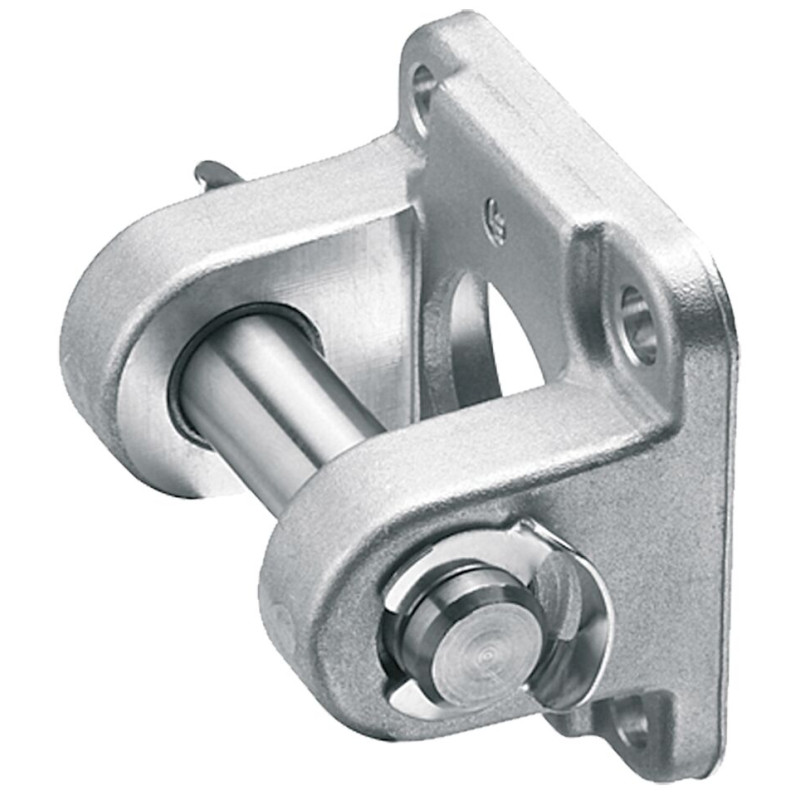

R349946100
D EMC80 &

R349946100
  • Availability: on request
  • Weight: 0.57 KG
  • Part number: R349946100
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R349946100
Physical size and weight
Net weight 0.573 kg
Other properties
Fastening elements for electromechanical cylinders Clevis mount
Nominal size 80
Max. dynamic load 13100 bar
Material of electromechanical cylinders Aluminum
Dimension CB H14 50 mm
Dimension CD H9 16 mm
Dimension E max. 98 mm
Dimension FL 36 mm
Dimension FL tolerance ± 0.2
Dimension L min. 20 mm
Dimension MR 17 mm
Dimension Tg 72 mm
Dimension TG 72 mm
Dimension TG tolerance ± 0.2
Dimension UB h14 90 mm
Dimension VB 96 mm
Features
  • Group 5, option 07
  • Material: Aluminum/galvanized cast iron with spheroidal graphite
CAD (2)
File R349946100.stp (ALL)
File R349946100.igs (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
