R349946000
D EMC63 &

R349946000
  • Availability: on request
  • Weight: 0.35 KG
  • Part number: R349946000
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R349946000
Physical size and weight
Net weight 0.345 kg
Other properties
Dimension CB H14 40 mm
Dimension CD H9 16 mm
Dimension E max. 73 mm
Dimension FL 32 mm
Dimension FL tolerance ± 0.2
Dimension L min. 18 mm
Dimension MR 17 mm
Dimension Tg 56.5 mm
Dimension TG 56.5 mm
Dimension TG tolerance ± 0.2
Dimension UB h14 70 mm
Dimension VB 76 mm

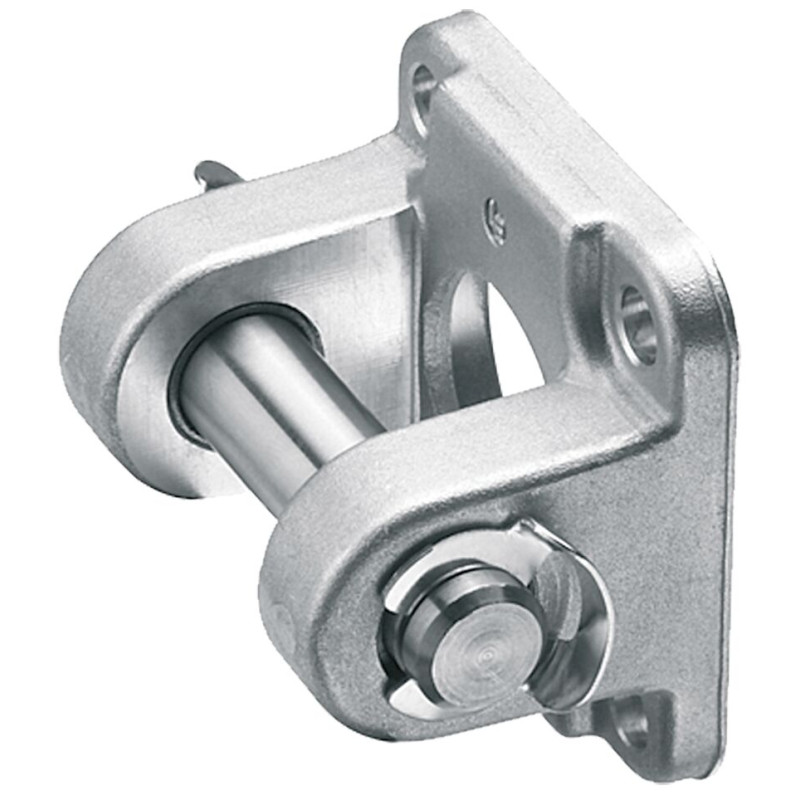

Fastening elements for electromechanical cylinders Clevis mount
Material of electromechanical cylinders Aluminum
Max. dynamic load 10900 bar
Nominal size 63
Features
  • Group 5, option 07
  • Material: Aluminum/galvanized cast iron with spheroidal graphite
