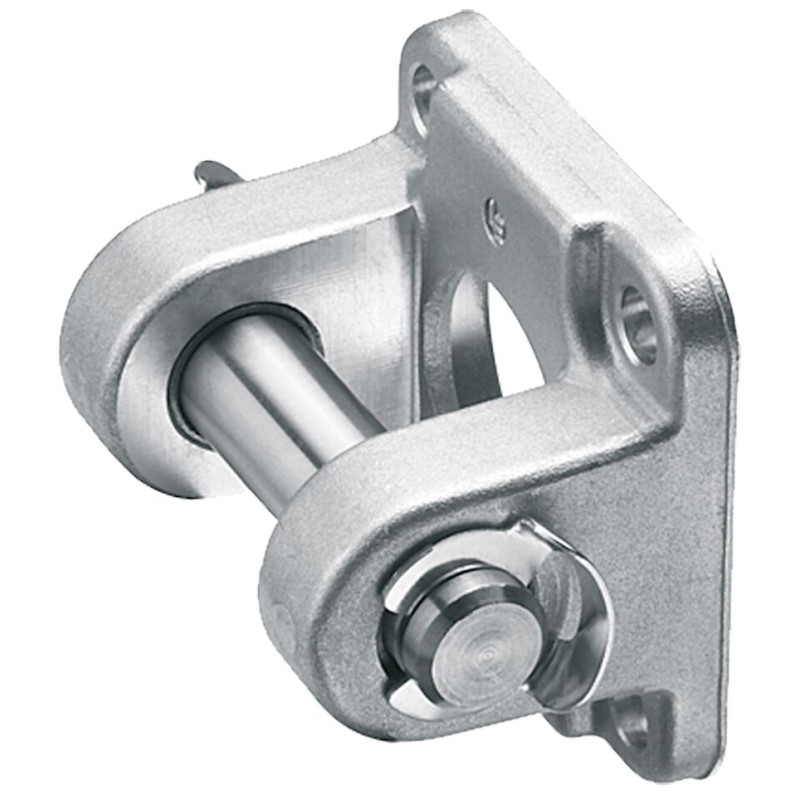

R349945900
D EMC50 &

R349945900
  • Availability: on request
  • Weight: 0.23 KG
  • Part number: R349945900
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R349945900
Physical size and weight
Net weight 0.229 kg
Other properties
Fastening elements for electromechanical cylinders Clevis mount
Nominal size 50
Footnote max. dynamic load Fmax EMC
Material of electromechanical cylinders Aluminum
Dimension CB H14 32 mm
Dimension CD H9 12 mm
Dimension E max. 63 mm
Dimension FL 27 mm
Dimension FL tolerance ± 0.2
Dimension L min. 15 mm
Dimension MR 13 mm
Dimension Tg 46.5 mm
Dimension TG 46.5 mm
Dimension TG tolerance ± 0.2
Dimension UB h14 60 mm
Dimension VB 65 mm
Features
  • Group 5, option 07
  • Material: Aluminum/galvanized cast iron with spheroidal graphite
CAD (2)
File R349945900.igs (ALL)
File R349945900.stp (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
