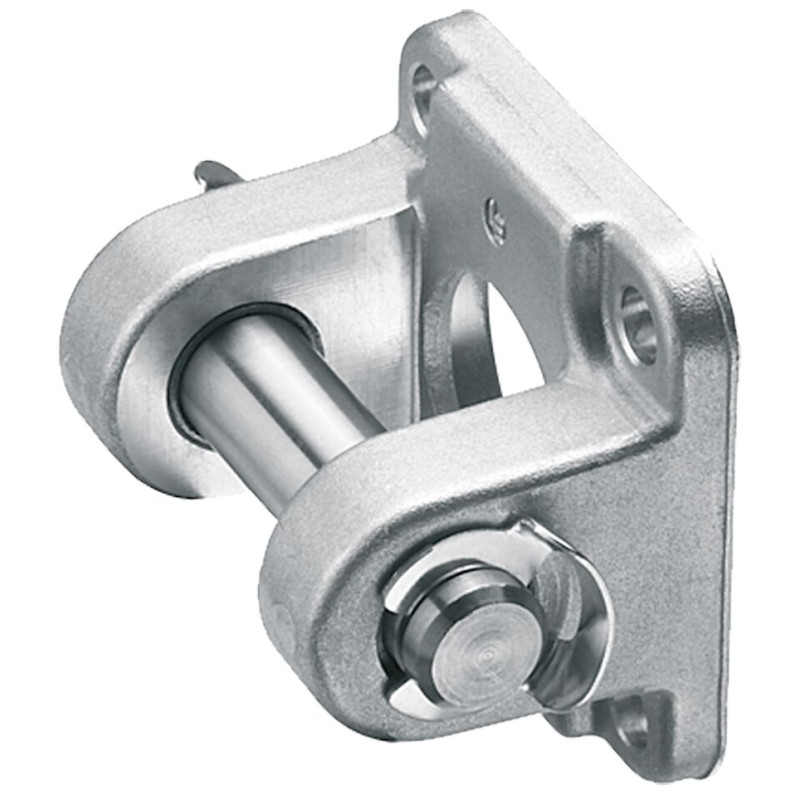

R349945800
D EMC40 &

R349945800
  • Availability: on request
  • Weight: 0.16 KG
  • Part number: R349945800
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R349945800
Physical size and weight
Net weight 0.156 kg
Other properties
Fastening elements for electromechanical cylinders Clevis mount
Nominal size 40
Footnote max. dynamic load Fmax EMC
Material of electromechanical cylinders Aluminum
Dimension CB H14 28 mm
Dimension CD H9 12 mm
Dimension E max. 53 mm
Dimension FL 25 mm
Dimension FL tolerance ± 0.2
Dimension L min. 15 mm
Dimension MR 13 mm
Dimension Tg 38 mm
Dimension TG 38 mm
Dimension TG tolerance ± 0.2
Dimension UB h14 52 mm
Dimension VB 57 mm
Features
  • Group 5, option 07
  • Material: Aluminum/galvanized cast iron with spheroidal graphite
CAD (2)
File R349945800.stp (ALL)
File R349945800.igs (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
