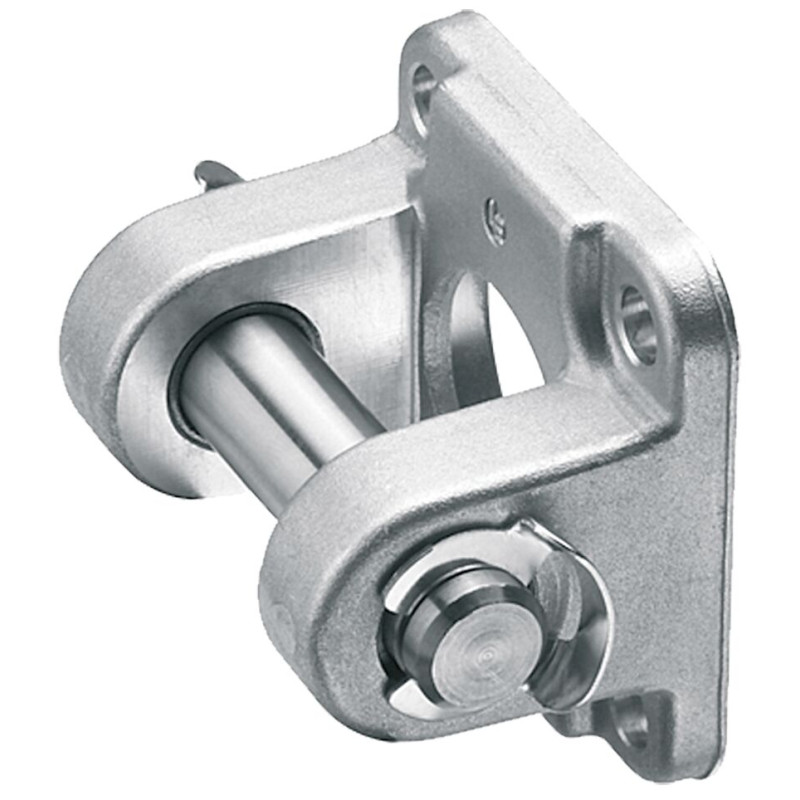

R349945700
D EMC32 &

R349945700
  • Availability: on request
  • Weight: 0.11 KG
  • Part number: R349945700
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R349945700
Physical size and weight
Net weight 0.108 kg
Other properties
Fastening elements for electromechanical cylinders Clevis mount
Nominal size 32
Footnote max. dynamic load Fmax EMC
Material of electromechanical cylinders Aluminum
Dimension CB H14 26 mm
Dimension CD H9 10 mm
Dimension E max. 49 mm
Dimension FL 22 mm
Dimension FL tolerance ± 0.2
Dimension L min. 12 mm
Dimension MR 10 mm
Dimension Tg 32.5 mm
Dimension TG 32.5 mm
Dimension TG tolerance ± 0.2
Dimension UB h14 45 mm
Dimension VB 50 mm
Features
  • Group 5, option 07
  • Material: Aluminum/galvanized cast iron with spheroidal graphite
CAD (2)
File R349945700.stp (ALL)
File R349945700.igs (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
