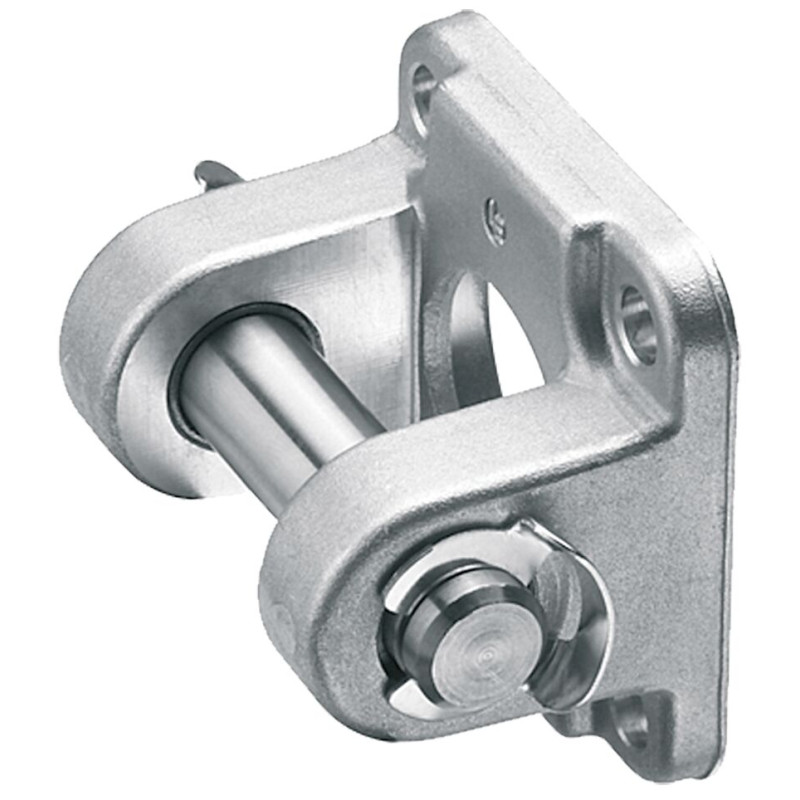

R349946200
D EMC100 &

R349946200
  • Availability: on request
  • Weight: 0.87 KG
  • Part number: R349946200
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R349946200
Physical size and weight
Net weight 0.87 kg
Other properties
Fastening elements for electromechanical cylinders Clevis mount
Nominal size 100
Max. dynamic load 16400 bar
Material of electromechanical cylinders Aluminum
Dimension CB H14 60 mm
Dimension CD H9 20 mm
Dimension E max. 115 mm
Dimension FL 41 mm
Dimension FL tolerance ± 0.2
Dimension L min. 25 mm
Dimension MR 18 mm
Dimension Tg 89 mm
Dimension TG 89 mm
Dimension TG tolerance ± 0.2
Dimension UB h14 110 mm
Dimension VB 117 mm
Features
  • Group 5, option 07
  • Material: Aluminum/galvanized cast iron with spheroidal graphite
CAD (2)
File R349946200.igs (ALL)
File R349946200.stp (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
