Other properties
| Nominal size |
180 x 28
|
| Permissible radial load |
7000
|
| Material footnote |
Up to 200°C continuous operation, brief peaks up to 250°C
|
| Dimension b |
28
mm |
| Dimension bore D |
183.96,183.8
|
| Dimension d |
180
mm |
| Dimension D1 |
185.3
mm |
Description

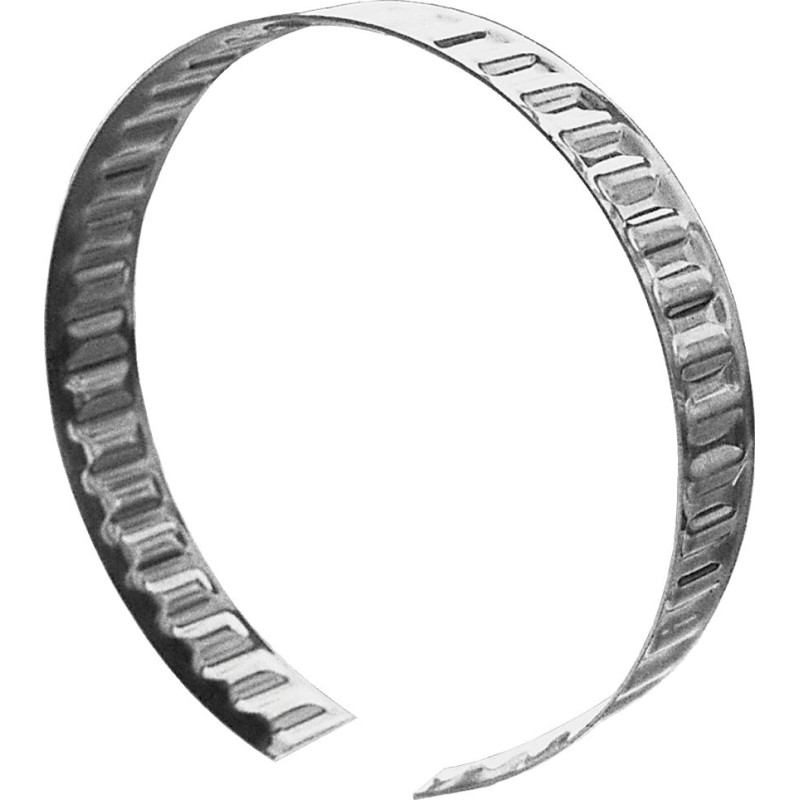

Tolerance ring
Type ANS: This version has a slanting edge and is used for mounting larger anti-friction bearings, especially in light metal housings.
Tolerance ring diameter (d) = 180
Tolerance ring width (b) = 28
Carbon steel
Features
- Quick, economic installation
- Compensates the differences in thermal expansion between machine elements made of different materials
- Eliminates the need for keyways or other positive-locking connections
- Connecting parts have a simple design
- High temperature stability
- Special sizes available on request
- Extremely low-cost machine element
- Resistant to various types of chemical stress
- Fixed and secure connection of machine parts
- Large tolerance zone with connecting parts
