Other properties
| Nominal size |
200 x 31
|
| Transferable torque |
4100
|
| Permissible radial load |
92000
|
| Material footnote |
Up to 200°C continuous operation, brief peaks up to 250°C
|
| Dimension b |
31
mm |
| Dimension d |
200
mm |
Description

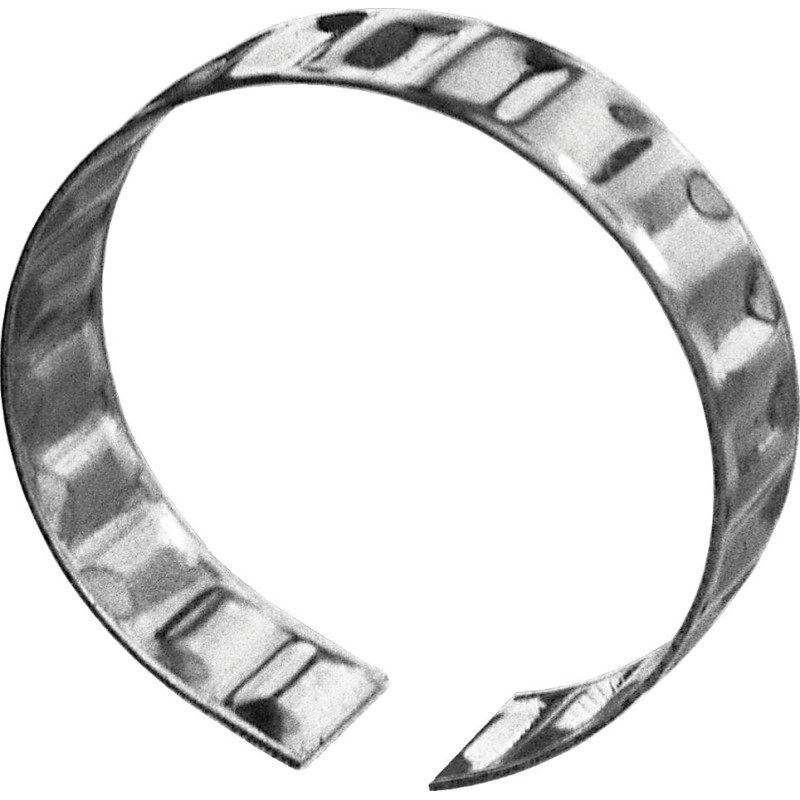

Tolerance ring
Type AN: The circumferential flat edges are located on the outer diameter of the tolerance ring. For use with a standard nominal shaft.
Tolerance ring diameter (d) = 200
Tolerance ring width (b) = 31
Carbon steel
Features
- Quick, economic installation
- Eliminates the need for keyways or other positive-locking connections
- Compensates the differences in thermal expansion between machine elements made of different materials
- High temperature stability
- Connecting parts have a simple design
- Compensates the differences in thermal expansion between machine elements made of different materials
- Eliminates the need for keyways or other positive-locking connections
- Connecting parts have a simple design
- High temperature stability
- Special sizes available on request
- Extremely low-cost machine element
- Resistant to various types of chemical stress
- Fixed and secure connection of machine parts
- Large tolerance zone with connecting parts
