| Ambient temperature fixed extension |
-40 °C ... +85 °C
|
| Ambient temperature flexible extension |
-25 °C ... +85 °C
|
| Bending cycles |
10 million
|
| Cable color |
black
|
| Cable cross-section |
3 x 0.25 mm²
|
| Cable material |
PUR
|
| Compatible |
EMC, CKK, CKR, MKK, MKR, MLR, OBB, AGK, VKK, TKL, PSK
|

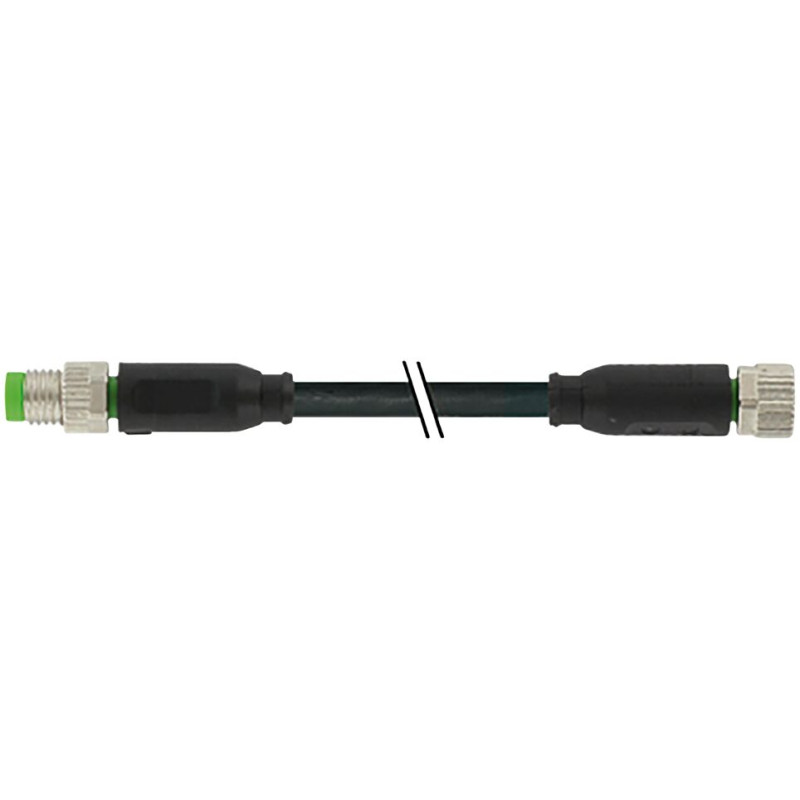

| Connection type 1 |
Female connector, straight, M8x1, 3-pin
|
| Connection type 2 |
Male connector, straight, M8x1, 3-pin
|
| Dimension L |
10000
mm |
| Dynamic bending radius |
≥ 10xD
|
| Electrical accessories for electromechanical cylinders |
Extensions
|
| Electrical accessories for linear axes |
Extensions
|
| Function indicator |
no
|
| Max. permissible travel speed |
3.3 m/s for 5 m travel range (typ.), up to 5 m/s for 0.9 m travel range
|
| Maximum acceleration rate amax |
30
m/s² |
| Operating voltage (min. … max.) |
10 V DC ... 30 V DC
|
| Operating voltage indicator |
no
|
| Protection class |
IP 68
|
| Shield |
no
|
| Static bending radius |
≥ 5xD
|
| Suitable for drag chains |
Yes
|
| Torsion-resistant |
no
|
| Use |
Extension cable
|
| Weld spark-resistant |
no
|
