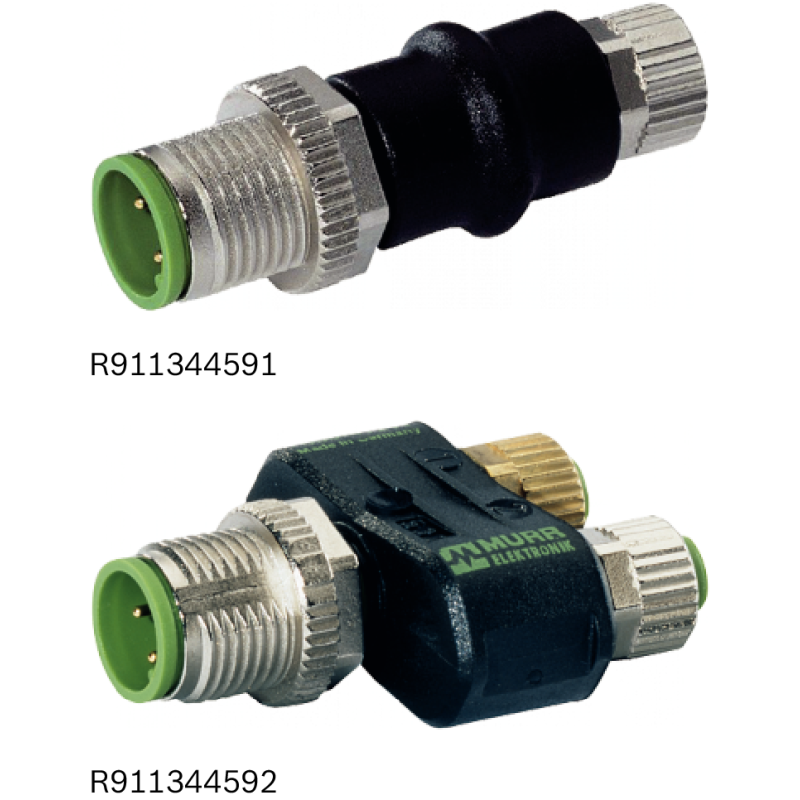

R911344591
7000-42201-0000000

R911344591
  • Availability: on request
  • Weight: 0.01 KG
  • Part number: R911344591
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R911344591
Physical size and weight
Net weight 12.8 g
Other properties
Compatible EMC, CKK, CKR, MKK, MKR, MLR, OBB, AGK, VKK, TKL, PSK
Connection type 1 Straight female connector, M8x1, 3-pin, self-locking screw thread
Connection type 2 Male connector, straight, M12x1, 3-pin, self-locking screw thread
Electrical accessories for electromechanical cylinders Adapter
Electrical accessories for linear axes Adapter
Function indicator no
Maximum operating current per contact 4 A
Note on protection class inserted & screwed down
Operating voltage (min. … max.) 32 V
Operating voltage indicator no
Permissible ambient temperature (min. ... max.) -25 °C ... +85 °C
Protection class IP67
Use Adapter
Version straight, for 1 sensor
Catalog (5)
PDF Linear modules MKK, MKR, MLR (EN)
PDF OBB Omega modules (EN)
PDF Ball rail tables TKK (EN)
PDF Feed Modules VKK (EN)
PDF Drive units AOK, AGK (EN)
Manual (10)
PDF 紧凑型模块 CKK/CKR (ALL)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
PDF Módulos compactos CKK/CKR (ALL)
PDF Feed Modules VKK (EN)
PDF Linear modules MKK/MKR/MLR -040/-065/-080/-110/-140/-145-NN-3/-165-NN-2 (EN)
PDF Drive units AGK/AOK (EN)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Ball rail tables TKL (EN)
PDF Electromechanical cylinder EMC-HP (EN)
PDF Ball rail tables TKK (EN)
