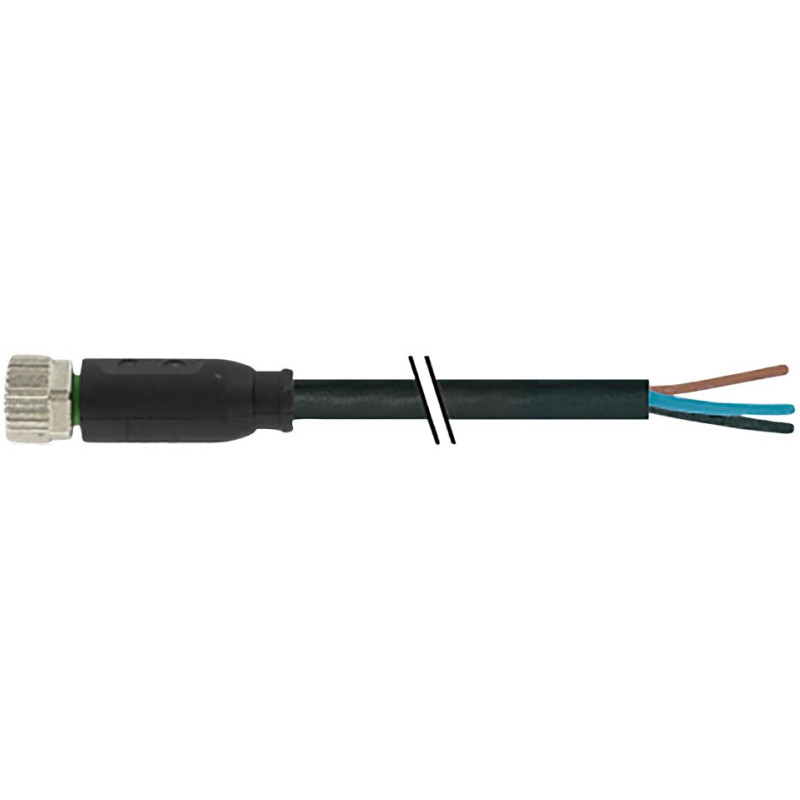

R911344620
7000-08041-6501500

R911344620
  • Availability: on request
  • Weight: 0.36 KG
  • Part number: R911344620
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R911344620
Physical size and weight
Net weight 357 g
Cable diameter D 4.1 mm
Cable diameter D tolerance ± 0.2
Other properties
Electrical accessories for electromechanical cylinders Extensions
Connection type 1 Female connector, straight, M8x1, 3-pin
Electrical accessories for linear axes Extensions
Use Extension cable
Connection type 2 Unassembled cable end
Maximum acceleration rate amax 30 m/s²
Cable cross-section 3 x 0.25 mm²
Operating voltage (min. … max.) 10 V DC ... 30 V DC
Operating voltage indicator no
Shield no
Dynamic bending radius ≥ 10xD
Static bending radius ≥ 5xD
Bending cycles 10 million
Function indicator no
Cable color Black
Cable material PUR
Compatible EMC, CKK, CKR, MKK, MKR, MLR, OBB, AGK, VKK, TKL, PSK
Max. permissible travel speed 3.3 m/s for 5 m travel range (typ.), up to 5 m/s for 0.9 m travel range
Suitable for drag chains Yes
Protection class IP68
Weld spark-resistant no
Torsion-resistant no
Ambient temperature fixed extension -40 °C ... +85 °C
Ambient temperature flexible extension -25 °C ... +85 °C
Dimension L 15000 mm
Manual (1)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
