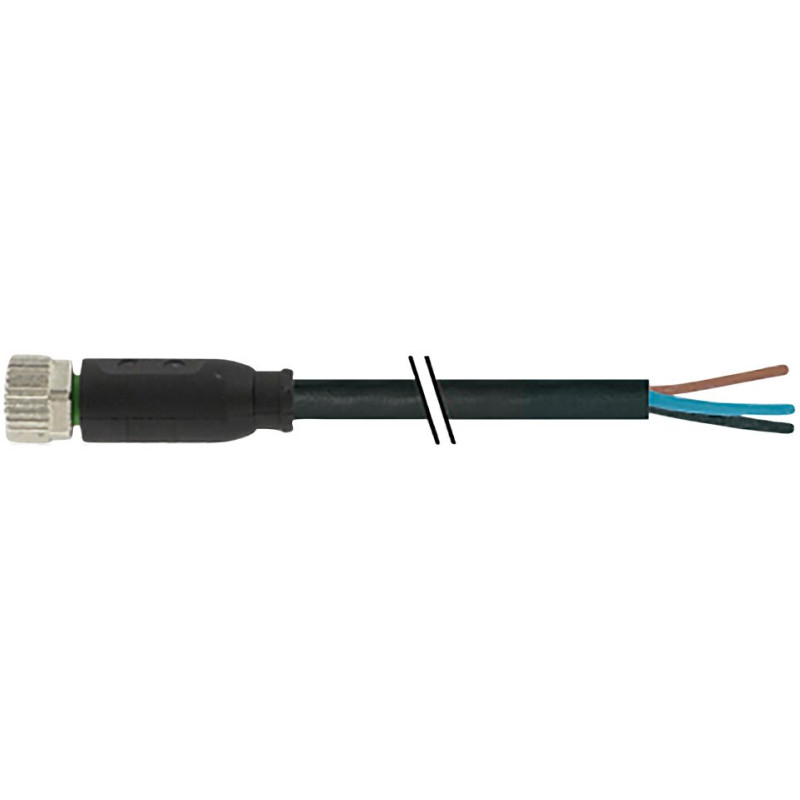

R911344619
7000-08041-6501000

R911344619
  • Availability: on request
  • Weight: 0.24 KG
  • Part number: R911344619
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R911344619
Physical size and weight
Cable diameter D 4.1 mm
Cable diameter D tolerance ± 0.2
Net weight 240 g
Other properties
Ambient temperature fixed extension -40 °C ... +85 °C
Ambient temperature flexible extension -25 °C ... +85 °C
Bending cycles 10 million
Cable color black
Cable cross-section 3 x 0.25 mm²
Cable material PUR
Compatible EMC, CKK, CKR, MKK, MKR, MLR, OBB, AGK, VKK, TKL, FMS, FMB, PSK
Connection type 1 Female connector, straight, M8x1, 3-pin
Connection type 2 Unassembled cable end
Dimension L 10000 mm
Dynamic bending radius ≥ 10xD
Electrical accessories for electromechanical cylinders Extensions
Electrical accessories for linear axes Extensions
Function indicator no
Max. permissible travel speed 3.3 m/s for 5 m travel range (typ.), up to 5 m/s for 0.9 m travel range
Maximum acceleration rate amax 30 m/s²
Operating voltage (min. … max.) 10 V DC ... 30 V DC
Operating voltage indicator no
Protection class IP 68
Shield no
Static bending radius ≥ 5xD
Suitable for drag chains Yes
Torsion-resistant no
Use Extension cable
Weld spark-resistant no
Manual (1)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
