Physical size and weight
| Net weight |
0.154
kg |
| Dimension diameter S3 (profiled rail systems) |
7
mm |
| Dimension diameter S4 (profiled rail systems) |
5
mm |
Other properties
| Accessories for |
Runner block
|
| Nominal size |
65
|
| Tightening torque |
0.4
Nm |
| Dimension A4 (profiled rail system) |
118.4
mm |
| Dimension B1 |
6
mm |
| Dimension B2 (profiled rail systems) |
9.1
mm |
| Dimension E8 (profiled rail systems) |
93
mm |
| Dimension E8.1 (profiled rail systems) |
93
mm |
| Dimension E9 (profiled rail systems) |
8
mm |
| Dimension E9.1 (profiled rail systems) |
24.7
mm |
| Dimension H3 |
73.9
mm |
Description

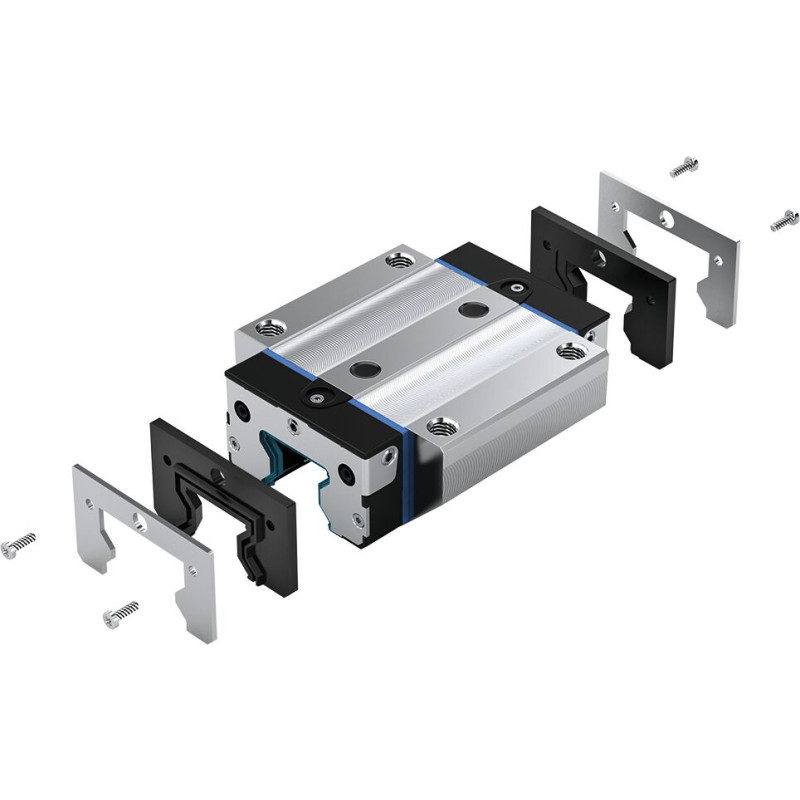

FKM seal for roller rail systems
Size 65
Features
- For mounting on roller runner blocks for all roller guide rails
- Two-piece FKM seal
- Material: Stainless steel plus FKM seal
- Simple assembly/removal on fixed roller guide rail
- Observe the mounting instructions
