Physical size and weight
| Net weight |
0.284
kg |
| Dimension diameter S3 (profiled rail systems) |
7
mm |
| Dimension diameter S4 (profiled rail systems) |
5
mm |
Other properties
| Accessories for |
Runner block
|
| Nominal size |
65
|
| Tightening torque |
0.4
Nm |
| Dimension A4 (profiled rail system) |
118.4
mm |
| Dimension B1 |
8
mm |
| Dimension B2 (profiled rail systems) |
11.1
mm |
| Dimension E8 (profiled rail systems) |
93
mm |
| Dimension E8.1 (profiled rail systems) |
93
mm |
| Dimension E9 (profiled rail systems) |
8
mm |
| Dimension E9.1 (profiled rail systems) |
24.7
mm |
| Dimension H3 |
73.9
mm |
| Max. tightening torque |
0.4
Nm |
Description

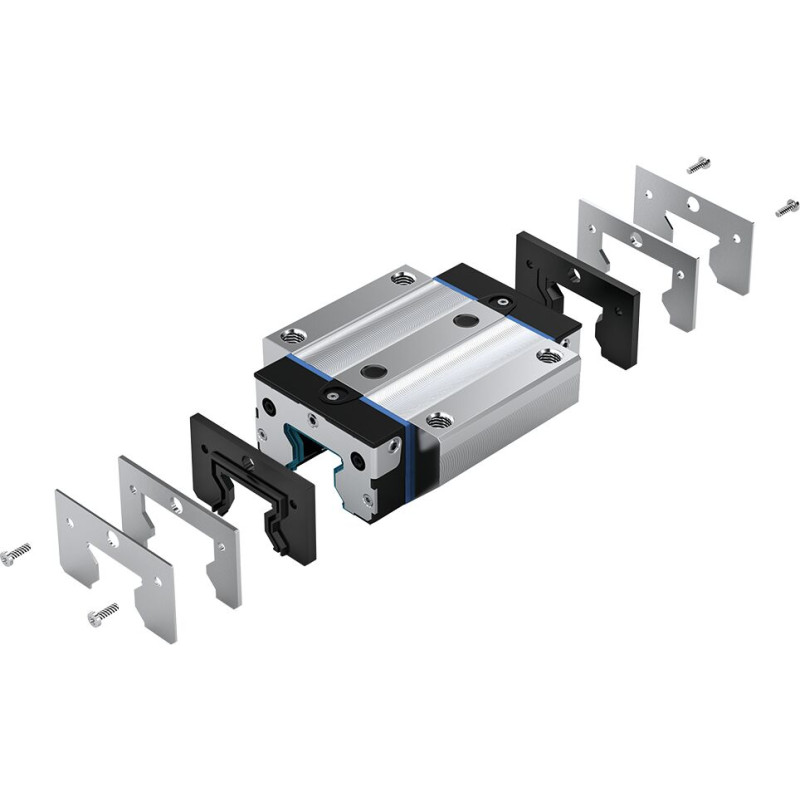

FKM seal set for roller rail system
Size 65
Features
- For mounting on roller runner blocks for all roller guide rails
CAD (2)
Manual (2)
R181062070
