Physical size and weight
| Net weight |
0.169
kg |
| Dimension diameter S2 (profiled rail systems) |
7
mm |
| Dimension diameter S3 (profiled rail systems) |
5
mm |
Other properties
| Accessories for |
Runner block
|
| Nominal size |
65
|
| Mass m (g) |
170
g |
| Size footnote |
For cover strip 0.3 mm
|
| Dimension A4 (profiled rail system) |
119
mm |
| Dimension B1 |
6
mm |
| Dimension B2 (profiled rail systems) |
7.75
mm |
| Dimension E8 (profiled rail systems) |
35
mm |
| Dimension E8.1 (profiled rail systems) |
106
mm |
| Dimension E9 (profiled rail systems) |
8.3
mm |
| Dimension E9.1 (profiled rail systems) |
54
mm |
| Dimension H3 |
74.5
mm |
Description

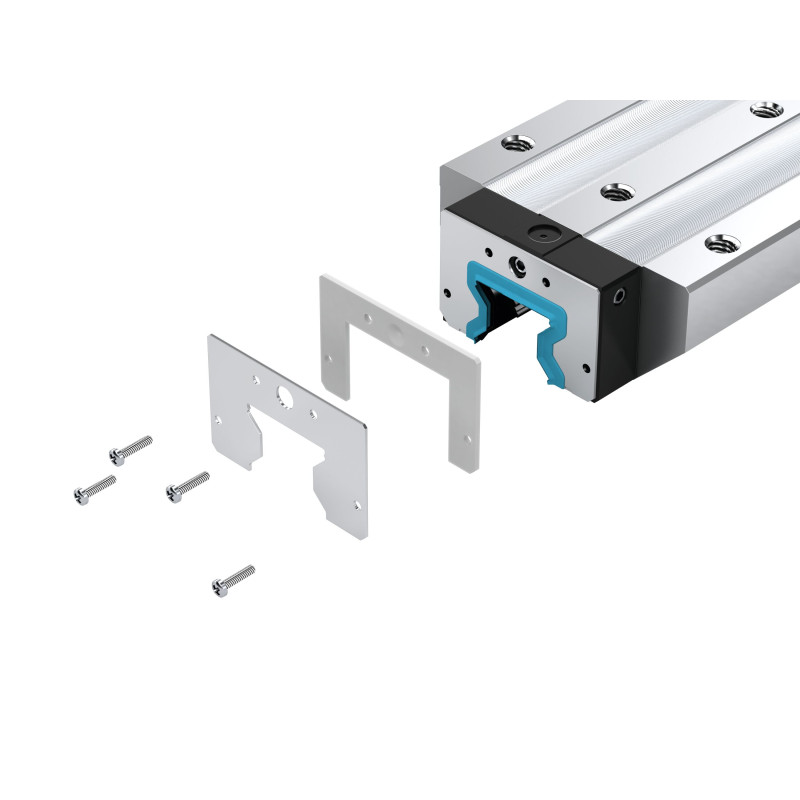

Cover plate wiper for roller rail systems gen.1
Size = 65
Features
- For mounting on roller runner blocks for all roller guide rails
- Cover plate wiper; material: Rust-free spring steel in as per DIN EN 10088; version: blank
- Spacer plate; material: Aluminum
CAD (4)
Manual (2)
Roller rail systems High Precision RSHP
(EN)
|
Sign in
|
|
R182061040
