Physical size and weight
| Net weight |
86.4
g |
| Width of runner block |
91.5
mm |
| Height runner block with guide rail |
57
mm |
| Dimension diameter S2 (profiled rail systems) |
7
mm |
| Dimension diameter S3 (profiled rail systems) |
6
mm |
Other properties
| Accessories for |
Runner block
|
| Nominal size |
55
|
| Mass m (g) |
80
g |
| Dimension A (profiled rail systems) |
91.5
mm |
| Dimension D |
6.5
mm |
| Dimension D1 |
9.75
mm |
| Dimension E8 (profiled rail systems) |
74.2
mm |
| Dimension E9 (profiled rail systems) |
18.2
mm |
| Dimension H |
57
mm |
| Dimension X (profiled rail systems) |
50
mm |
Description

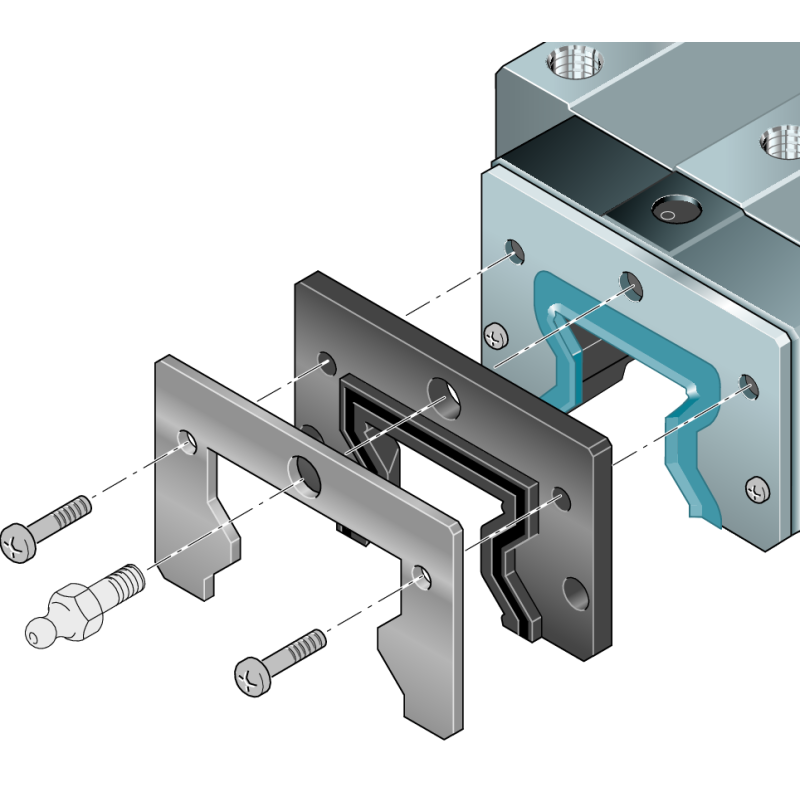

Viton seal for roller rail systems
Size 55
Features
- For mounting on roller runner blocks for all roller guide rails
- Material: Stainless steel plus seal made of Viton
- Easy mounting and removal even when guide rail is screwed down (note the mounting instructions).
- Two-piece
CAD (4)
Manual (2)
