Physical size and weight
| Net weight |
0.122
kg |
| Width of runner block |
70
mm |
| Length of runner block |
43
mm |
| Height runner block with guide rail |
53
mm |
| Height of guide rail H2 |
18
mm |
Other properties
| Accessories for |
Guide rail
|
| Nominal size |
52
|
| Holding force |
1500
N |
| Product information |
Suitable for guide rails: R1921, R1922, R1924
|
| Dimension A (profiled rail systems) |
70
mm |
| Dimension A1 (profiled rail systems) |
46
mm |
| Dimension A2 (profiled rail systems) |
32
mm |
| Dimension B (profiled rail systems) |
43
mm |
| Dimension B1 |
23
mm |
| Dimension B2 (profiled rail systems) |
5.5
mm |
| Dimension D |
16
mm |
| Dimension H |
53
mm |
| Dimension H1 (profiled rail systems) |
42
|
| Dimension H2 (profiled rail systems) |
18
mm |
| Dimension H3 |
9
mm |

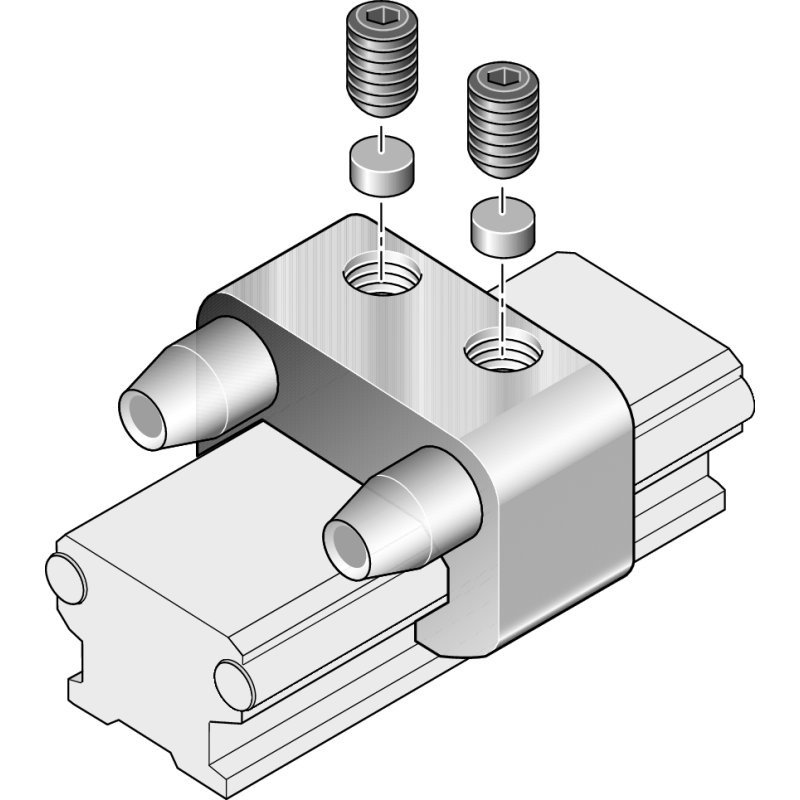

Description
Fixed stop for guide rails R1921, R1922 and R1924
Size = 52
Features
- The fixed stop can be used on the guide rails R1921 (standard), R1922 (with slot) and R1924 (flat).
Catalog (1)
CAD (4)
Manual (1)
