Physical size and weight
| Net weight |
54.193
g |
| Dimension diameter S3 (profiled rail systems) |
7
mm |
| Dimension diameter S4 (profiled rail systems) |
5
mm |
Other properties
| Accessories for |
Runner block
|
| Nominal size |
45
|
| Mass m (g) |
44
g |
| Dimension A4 (profiled rail system) |
80.4
mm |
| Dimension B1 |
2
mm |
| Dimension B2 (profiled rail systems) |
5.1
mm |
| Dimension E8 (profiled rail systems) |
62.9
mm |
| Dimension E9 (profiled rail systems) |
15.7
mm |
| Dimension H3 |
49.7
mm |
Description

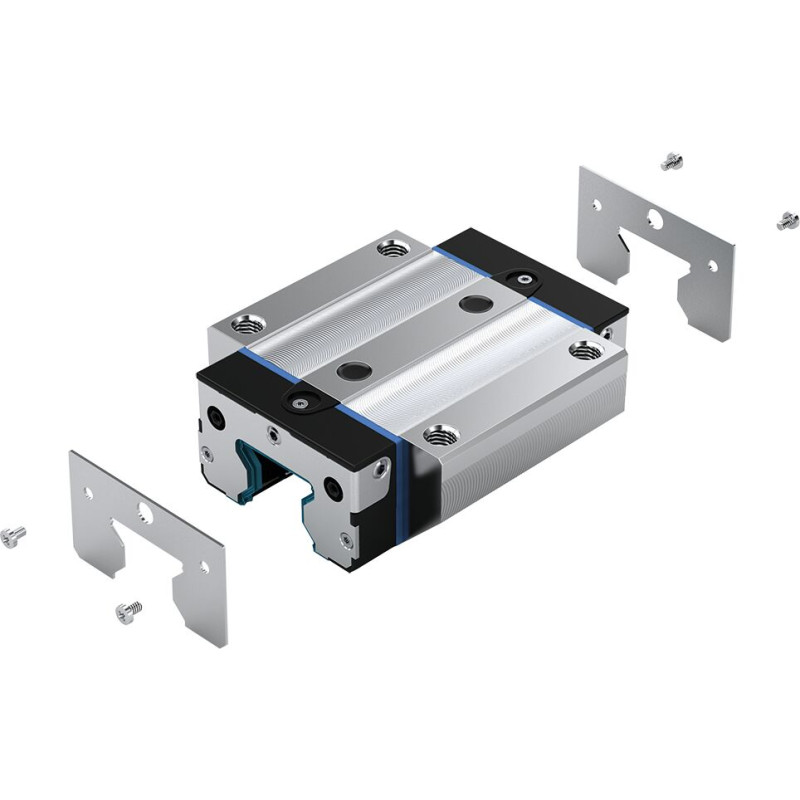

Cover plate wiper for roller rail systems RSHP
Size = 45
Features
- For mounting on roller runner blocks for all roller guide rails
- Material: Rust-free spring steel in as per DIN EN 10088
- Design: bright
CAD (2)
Manual (2)
Roller rail systems High Precision RSHP
