Physical size and weight
| Net weight |
0.193
kg |
| Dimension diameter S12 (profiled rail systems) |
7
mm |
| Dimension diameter S9 (profiled rail systems) |
5
mm |
Other properties
| Accessories for |
Runner block
|
| Nominal size |
45
|
| Type |
with cover strip
|
| Dimension A4 (profiled rail system) |
85
mm |
| Dimension B3 |
11.1
mm |
| Dimension B4 |
8
mm |
| Dimension E8 (profiled rail systems) |
69.8
mm |
| Dimension E9 (profiled rail systems) |
20.5
mm |
| Dimension H3 |
49.5
mm |
Description

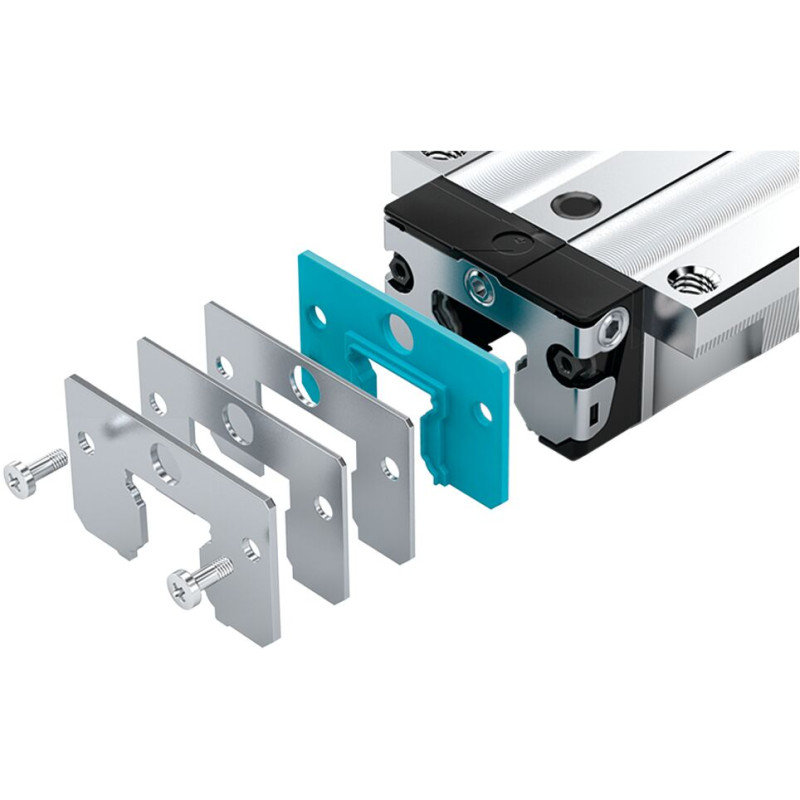

Seal kit for ball rail systems
With cover strip
Size 45
Features
- The seal kit is recommended when combining the cover plate wiper with a two-piece front seal.
