Physical size and weight
| Dimension S8 thread diameter (profiled rail systems) |
M6
|
| Dimension S9 thread diameter (profiled rail systems) |
M6
|
| Height runner block with guide rail |
60
mm |
| Net weight |
135
g |
Other properties
| Accessories for |
Runner Block
|
| Dimension A4 (profiled rail system) |
78
mm |
| Dimension B5 (profiled rail systems) |
18.5
mm |
| Dimension E8 (profiled rail systems) |
62.9
mm |
| Dimension E9 (profiled rail systems) |
16.7
mm |
| Dimension H |
60
mm |
| Dimension H3 |
50
mm |
| Dimension H4 |
0.75
mm |
| Dimension N8 (profiled rail systems) |
7.25
mm |
| Dimension N9 (profiled rail systems) |
7.5
mm |
| Footnote Dimension H |
Dimension with regard to mounting surface of the roller runner block for a standard higher version
|
| Maximum operating temperature |
+ 60
|
| Nominal size |
45
|
| Operating temperature (min. … max.) |
+60 °C
|
| Permissible ambient temperature (min. ... max.) |
-10 °C ... +40 °C
|
| Possible travel distance s with front lube units |
3000
km |
| Tightening torque |
1
Nm |
Description

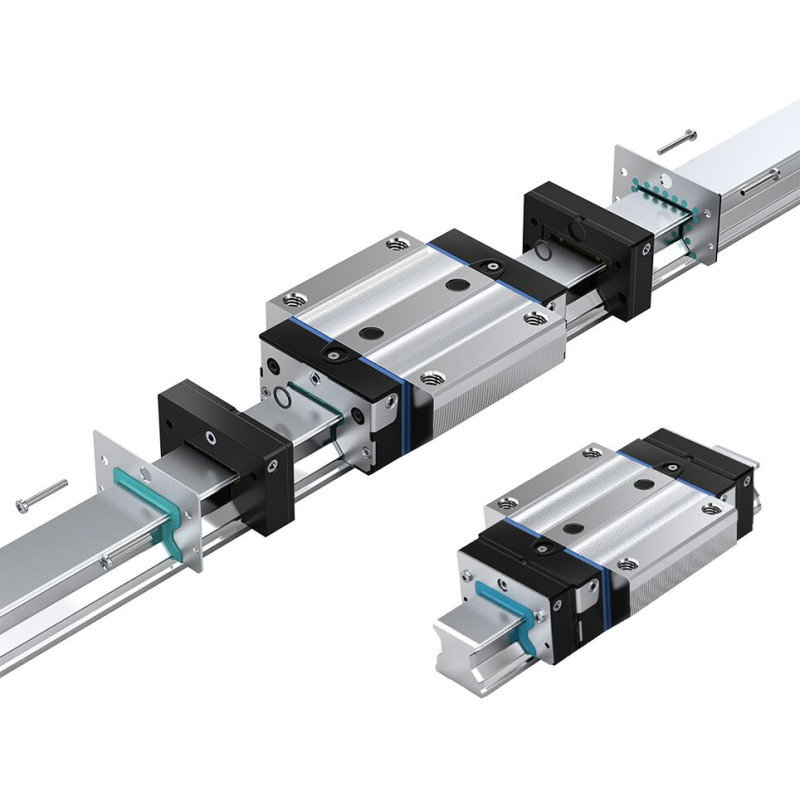

Front lube unit for roller rail systems
Size 45
Features
- Front lube units suitable for RSHP roller runner blocks and roller runner block generation 1
- For a travel distance of up to 5,000 km without re-lubrication
- Roller Runner Block only needs initial lubrication with grease
- Front lube units on both sides of the Roller Runner Block
- Low lubricant loss
- Reduced oil consumption
- No lubrication lines
- Front lube unit can be refilled using the lube nipple on the end-face or at the side.
- Size 25: Lube connection on the end-face of the front lube unit is suitable for the grease lubrication of the Roller Runner Block. For this purpose, a lube pin is attached. For a detailed instruction for mounting with size 25, please refer to the Roller Rail System instruction.
